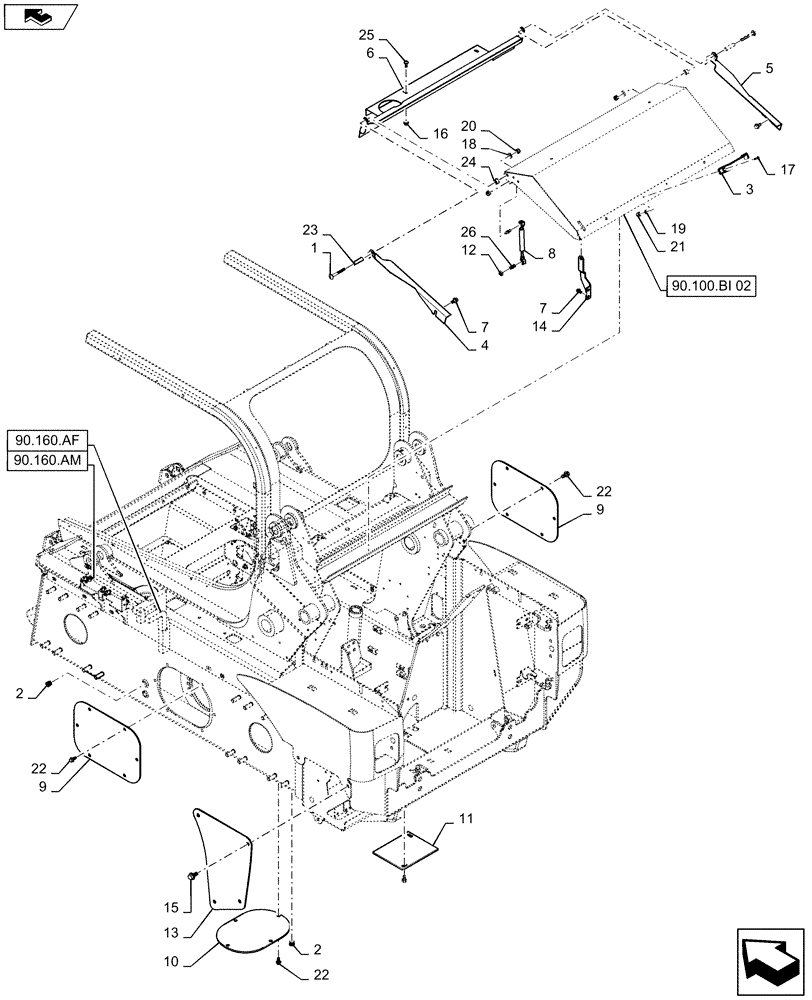

Запчасти Case SR160 (90.100.BI[01]) - REAR HOOD AND CHASSIS ACCESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

2

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

3

406256A1

HANDLE

Rear Hood

1шт.

4

47499445

ANGLE

Hood Stop, LH

1шт.

5

47499447

ANGLE

Hood Stop, RH

1шт.

6

47518029

HOOD

Rear Fixed

1шт.

7

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

8

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Hood Assist

1шт.

9

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

Chain Tank

2шт.

10

84299800

COVER PLATE

Lower

1шт.

11

84299809

COVER PLATE

Plumbing Access Cover

1шт.

12

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

13

84306104

COVER

Battery

1шт.

14

84583848

PLATE

Hood Lock Tab

1шт.

15

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

16

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

17

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

19

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

20

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

21

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

22

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

23

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

Hood

2шт.

24

87429698

SPACER

Hood

2шт.

25

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

26

189609A1

BALL STUD,M8 x 1.25

2шт.
