(82.300.AN[06]) - BOLT ON CUTTING EDGE, 60" BUCKET

Запчасти Case SR160 (82.300.AN[06]) - BOLT ON CUTTING EDGE, 60" BUCKET (82) - FRONT LOADER & BUCKET

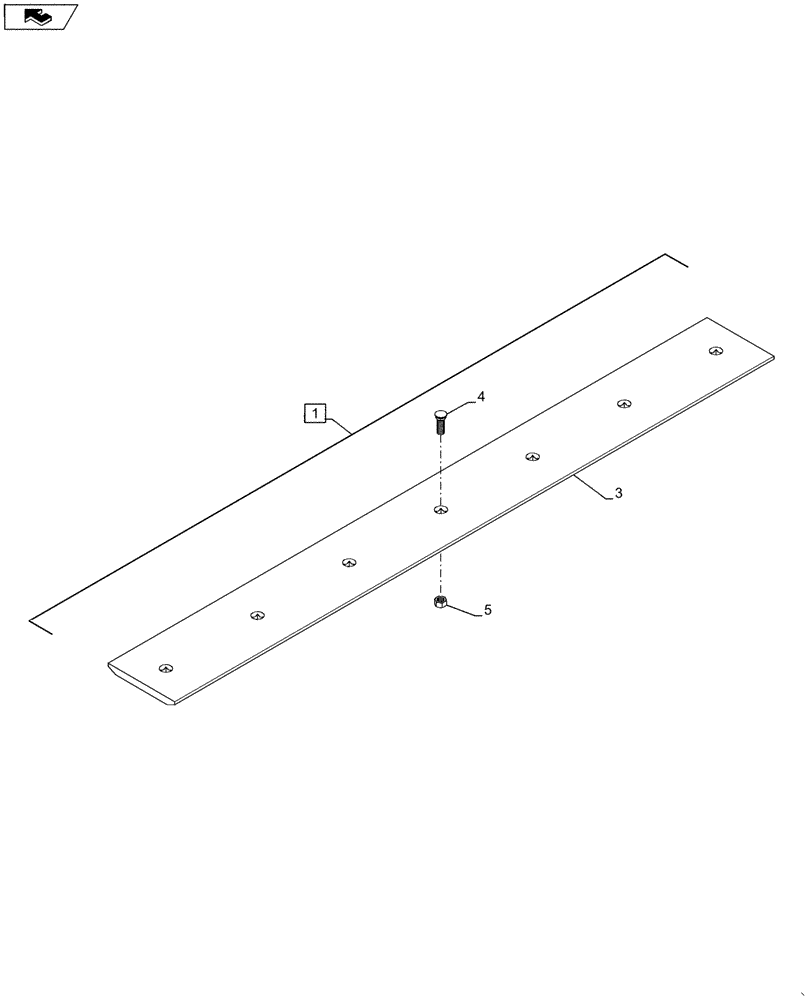

Схема запчастей Case SR160 - (82.300.AN[06]) - BOLT ON CUTTING EDGE, 60" BUCKET (82) - FRONT LOADER & BUCKET
3
5
1
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84397753

KIT

Bolt On Cutting Edge, 60" Bucket, Grey, Incl 2 - 5

1шт.

2

84397756

INSTRUCTION

Installation, Not Illustrated

1шт.

3

86577165

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1520.8mm L

Bolt On, 60", Grey

1шт.

9" Between Bolt Holes

1шт.

4

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

7шт.

Выбрано товаров: 6
