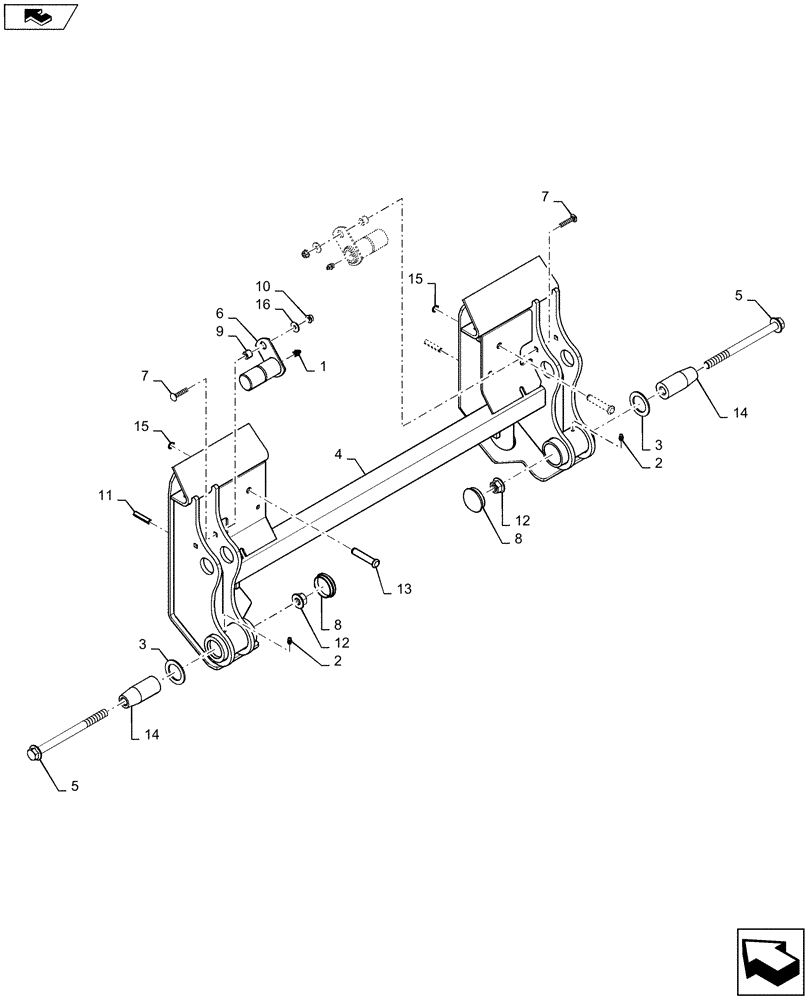

Запчасти Case SR160 (82.100.AG) - COUPLER (82) - FRONT LOADER & BUCKET

1

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

2

87414

LUBE NIPPLE,1/4" - 28

4шт.

3

191823

WASHER

2шт.

4

47429244

COUPLING

Frame

1шт.

5

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

6

84259556

PIN,38.1mm OD x 99.4mm L

Coupler Tip Cylinder

2шт.

7

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

8

86561087

DUST CAP

2шт.

9

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

10

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

11

86624091

PIN,9.53mm OD x 44.45mm L, Coiled

2шт.

12

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

13

87387540

PIN,12.7mm OD x 67.55mm L

Handle Pivot

2шт.

14

87597878

PIN,38.1mm OD x 92mm L

Boom

2шт.

14a

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

4шт.

15

87612753

RETAINER,#50, 0.46", Ext

2шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.
