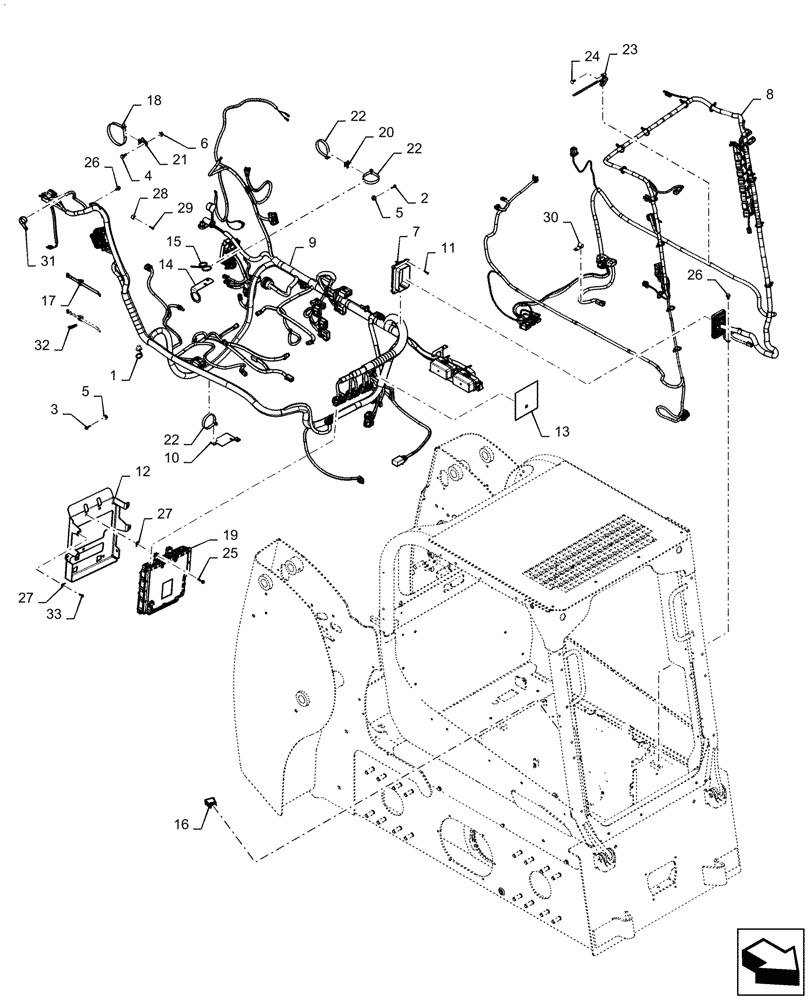

Запчасти Case SR160 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (25-AUG-2015 THRU 13-NOV-2016) (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

18шт.

2

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

2шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

7

87718301

WIRE CONNECTOR,Flange

1шт.

8

47803843

WIRE HARNESS

Cab, EH

1шт.

9

47813056

WIRE HARNESS

Chassis, EH

1шт.

10

47820698

BRACKET

Harness Support

1шт.

11

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

12

47860657

BRACKET

UCM Support Gray

1шт.

13

47878678

DECAL

Fuse Box Layout

1шт.

14

47880247

BRACKET

CCV ISM

1шт.

15

82012869

CABLE TIE,300mm L, Nylon, Black

6шт.

16

84251343

SWITCH

Drive Pattern

1шт.

17

84259663

CABLE TIE,228.6mm L, Nylon, Black

3шт.

18

84266050

CABLE TIE,384mm L, Polyamide

13шт.

19

84267444

ECU

SSL

1шт.

20

84318895

SPACER,17.97mm H

1шт.

21

84360210

BASE

Tie

1шт.

22

84360212

CABLE TIE,294.2mm L, Nylon

3шт.

23

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

24

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

25

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.

26

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

27

86625073

SPRING NUT,M6 x 1

10шт.

28

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

29

86639263

BOLT,Hex, M5, Cl 8

1шт.

30

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

31

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

32

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

33

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.
