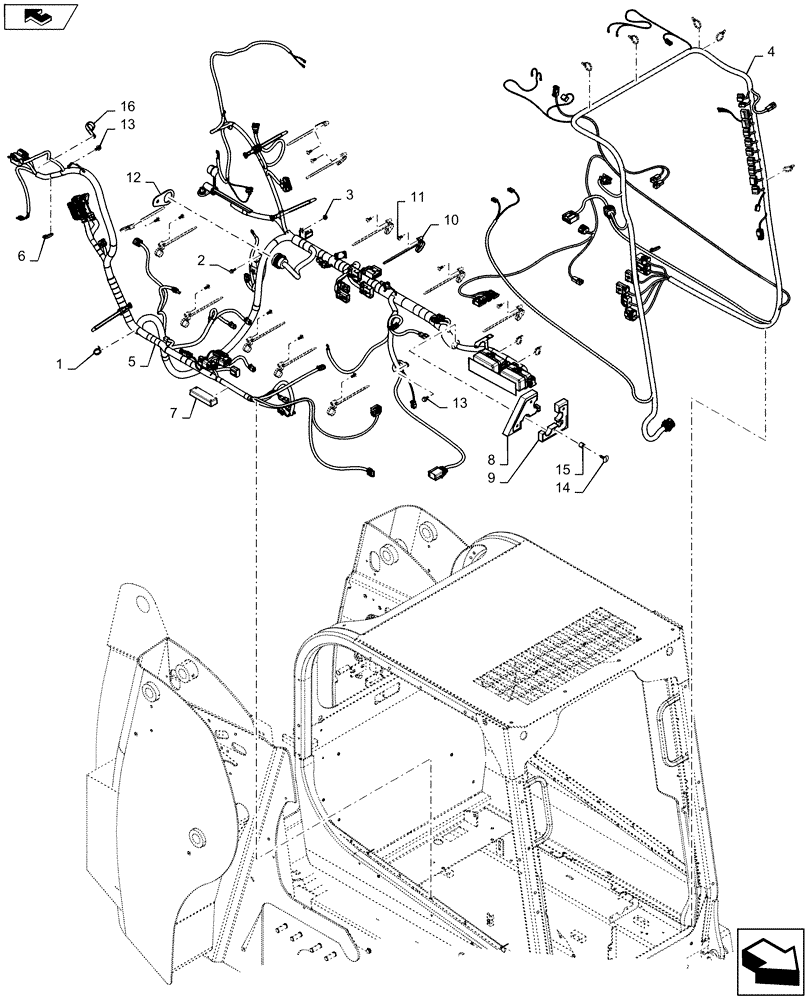

Запчасти Case SR160 (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS (24-AUG-2015 & PRIOR) (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

2

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

4

47385472

WIRE HARNESS

Cab Mechanical, T4

1шт.

5

47523490

WIRE HARNESS

Chassis Mechanical, T4, Years: -24-AUG-14

1шт.

5

47703672

WIRE HARNESS

Chassis Mechanical, T4, Start Year: 25-AUG-14

1шт.

6

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree

1шт.

7

84131374

MODULE

PWM Prop Aux

1шт.

8

84323728

SEAL

Assy, LH

1шт.

9

84323729

SEAL

Assy, LH

1шт.

10

84420746

CABLE TIE,403.9mm L, Nylon

0.5" DIA

10шт.

11

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

12

84541427

BRACKET

Engine Harness Interface

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

14

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

15

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

16

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.
