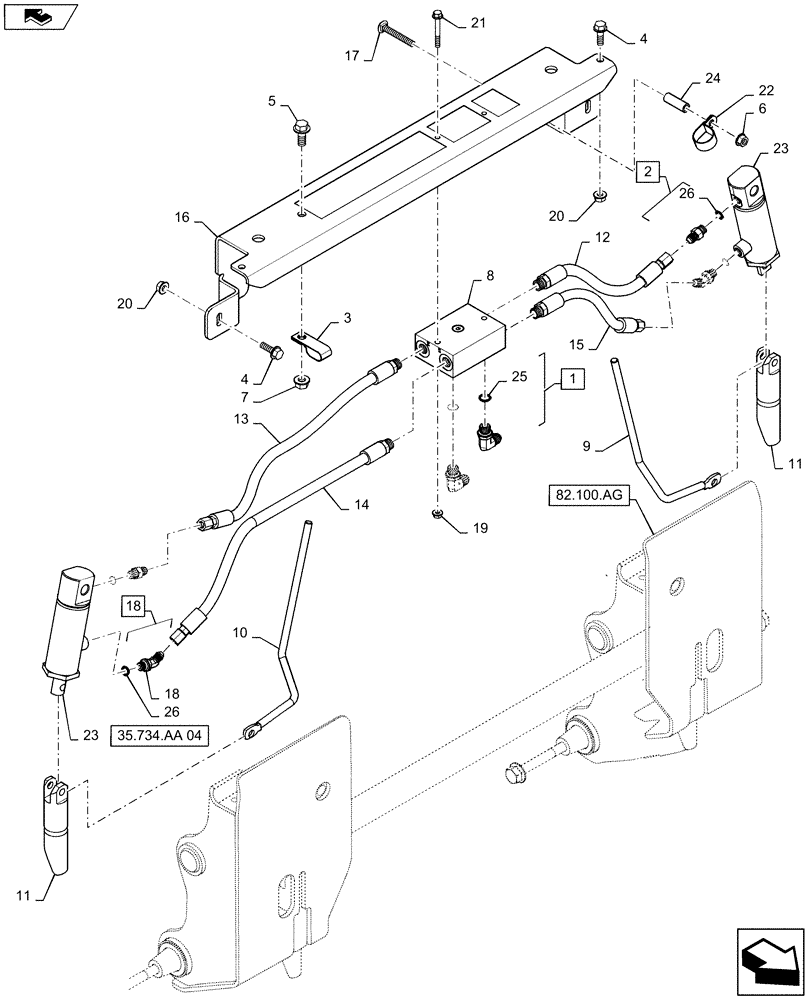

Запчасти Case SR160 (35.734.AA[03]) - HYDRAULIC COUPLER (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 25

2шт.

2

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl 26

2шт.

3

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

8

47418981

CHECK VALVE

Hydraulic Coupler

1шт.

9

47425133

ROD

Hydraulic Coupler Position Indicator, LH

1шт.

10

47425134

ROD

Hydraulic Coupler Position Indicator, RH

1шт.

11

47425135

PIN,31.75mm OD x 142.3mm L

Latch

2шт.

12

47426339

HYDRAULIC HOSE,6.35mm ID x 240mm L, SAE 100R16

Check Valve To RH Coupler Cylinder, Rod End

1шт.

13

47426340

HYDRAULIC HOSE,6.35mm ID x 456mm L, SAE 100R16

Check Valve To LH Coupler Cylinder, Rod End

1шт.

14

47426341

HYDRAULIC HOSE,6.35mm ID x 469mm L, SAE 100R17

Check Valve To LH Coupler Cylinder, Base End

1шт.

15

47426342

HYDRAULIC HOSE,6.35mm ID x 255mm L, SAE 100R17

Check Valve To RH Coupler Cylinder, Base End

1шт.

16

47475394

STEP

Cover, Hydraulic Coupler

1шт.

17

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

18

86512993

ELBOW,45 Degree, 7/16" - 20 JIC x 7/16" - 20 ORB

Incl 26

2шт.

19

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

20

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

21

87026500

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

22

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

Hose

1шт.

23

87442337

CYLINDER,Double Acting, 19.05mm Rod, 48mm Stroke

Hydraulic Coupler

2шт.

See Figure 35.734.AA(04) For Service Parts

1шт.

24

87698776

SPACER,8.48mm ID x 12.7mm OD x 36.5mm L

Hose Clamp

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

2шт.

26

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16" ORB

4шт.
