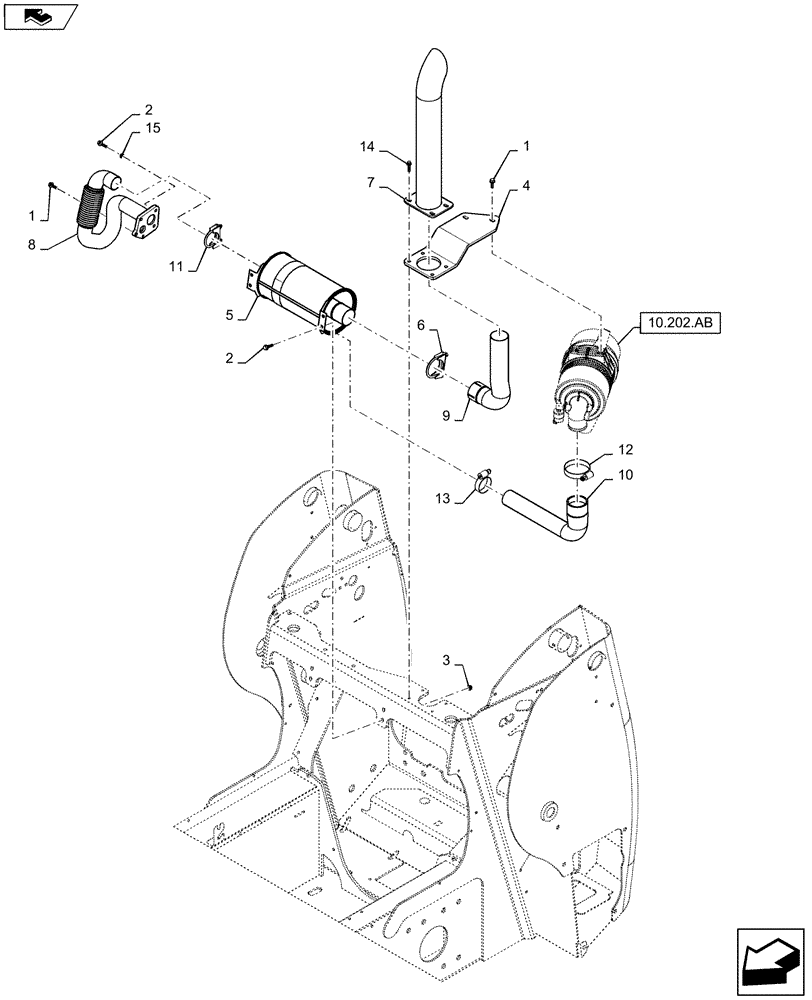

Запчасти Case SR150 (10.202.AD) - AIR CLEANER - AIR INTAKE PARTS (10) - ENGINE

1

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

2

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

6шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

47515485

BRACKET

Air Cleaner

1шт.

5

84287171

MUFFLER,Aspirated

Bilen ISM

1шт.

6

87461995

CLAMP,68mm ID, Muffler

1шт.

7

84518091

EXHAUST SYSTEM PIPE

Exhaust Stack

1шт.

8

84577904

EXHAUST SYSTEM PIPE

Exhaust Flexible

1шт.

9

84578937

TUBE

Muffler To Tailpipe

1шт.

10

84579327

HOSE

Intake Air

1шт.

11

84588569

CLAMP,54mm ID, Muffler

11шт.

12

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

1шт.

13

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

14

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

4шт.

15

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.
