Запчасти Case SR150 (10.101.AA) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE

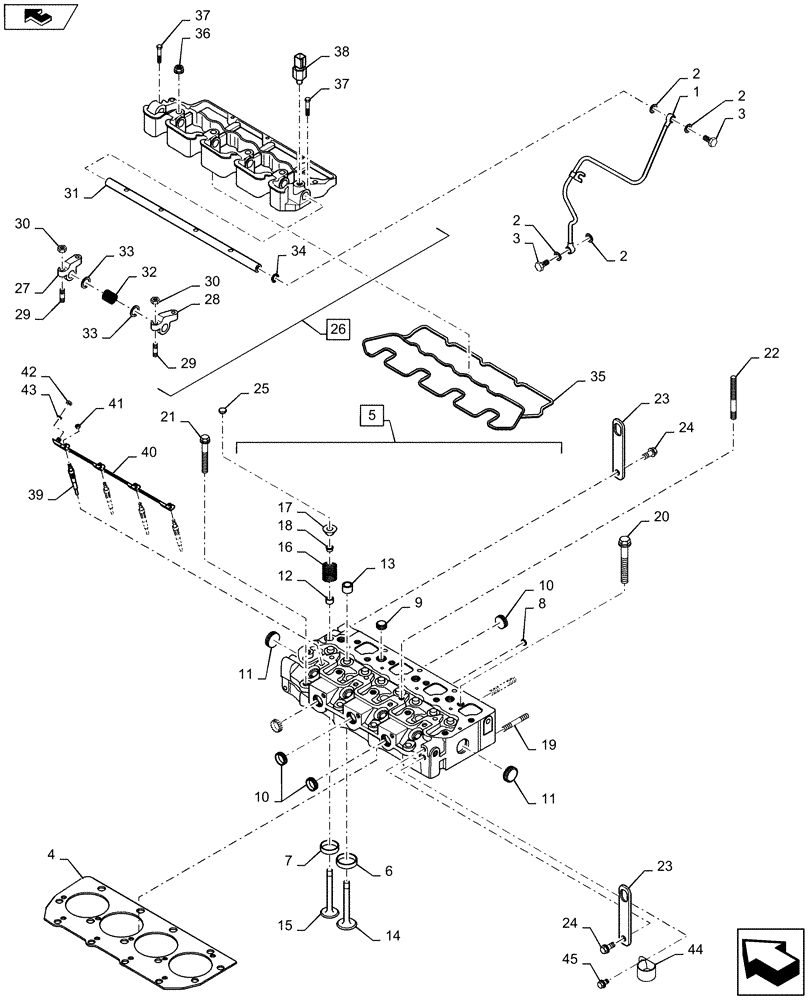

Схема запчастей Case SR150 - (10.101.AA) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE
20
29
29
13
5
10
31
21
37
8
2
33
22
37
9
18
11
17
45
23
6
3
26
42
3
7
11
44
41
10
16
12
34
28
40
43
home
2
25
39
27
4
2
32
14
38
30
35
23
24
19
15
36
2
30
33
24
1

Артикул

Название

Примечание

Количество

1

SBA140607750

PIPE

1шт.

2

SBA140996260

SEAL

4шт.

3

SBA198486780

BANJO BOLT

2шт.

4

SBA111147751

CYLINDER HEAD GASKET,1.1mm Thk

1шт.

4

SBA111147761

CYLINDER HEAD GASKET,1.2mm Thk

1шт.

4

SBA111147771

CYLINDER HEAD GASKET,1.3mm Thk

1шт.

5

SBA111011890

CYLINDER HEAD,4 Cylinder

Assembly, Incl 6 - 19

1шт.

6

SBA110136391

VALVE SEAT

4шт.

7

SBA110136430

VALVE SEAT

4шт.

8

SBA064210010

PLUG,10mm

3шт.

9

SBA064210018

PLUG

7шт.

10

SBA064210025

PLUG,25mm

6шт.

11

SBA064210030

PLUG,30mm

2шт.

12

SBA120406050

SEAL

4шт.

13

SBA120406070

SEAL

4шт.

14

SBA120166380

STD INLET VALVE

4шт.

15

SBA120176380

STD EXHAUST VALVE

4шт.

16

SBA198216700

SPRING

8шт.

17

SBA120186080

RETAINER

8шт.

18

SBA120226070

RETAINER

16шт.

19

SBA012110655

STUD

2шт.

20

SBA111136500

BOLT

14шт.

21

SBA111136511

BOLT

4шт.

22

SBA012109044

STUD

4шт.

23

SBA195816550

HANGER

2шт.

24

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

25

SBA120216041

CAP

8шт.

26

SBA120036830

ROCKER ARM

Assembly, Incl 27 - 34

1шт.

27

SBA120356131

ROCKER ARM

4шт.

28

SBA120356141

ROCKER ARM

4шт.

29

SBA199486220

ADJUSTMENT SCREW

8шт.

30

SBA020109076

NUT

8шт.

31

SBA120316201

SHAFT

1шт.

32

SBA198217170

SPRING

3шт.

33

SBA199280300

SHIM,0.5mm Thk

6шт.

34

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

35

SBA120996130

GASKET

1шт.

36

SBA023100010

NUT

4шт.

37

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

2шт.

38

SBA185246210

SENSOR

1шт.

39

SBA185366190

GLOW PLUG

4шт.

40

SBA185376150

BRACKET

1шт.

41

SBA023100004

NUT

4шт.

42

SBA020100004

NUT

1шт.

43

SBA027100004

LOCK WASHER

1шт.

44

SBA399110280

CLAMP

1шт.

45

SBA011510816

BOLT

1шт.

Выбрано товаров: 47
