Запчасти Case SR150 (35.734.AH[03]) - AUX HYD, STD, CHASSIS PLUMBING (SR130,SR150) (35) - HYDRAULIC SYSTEMS

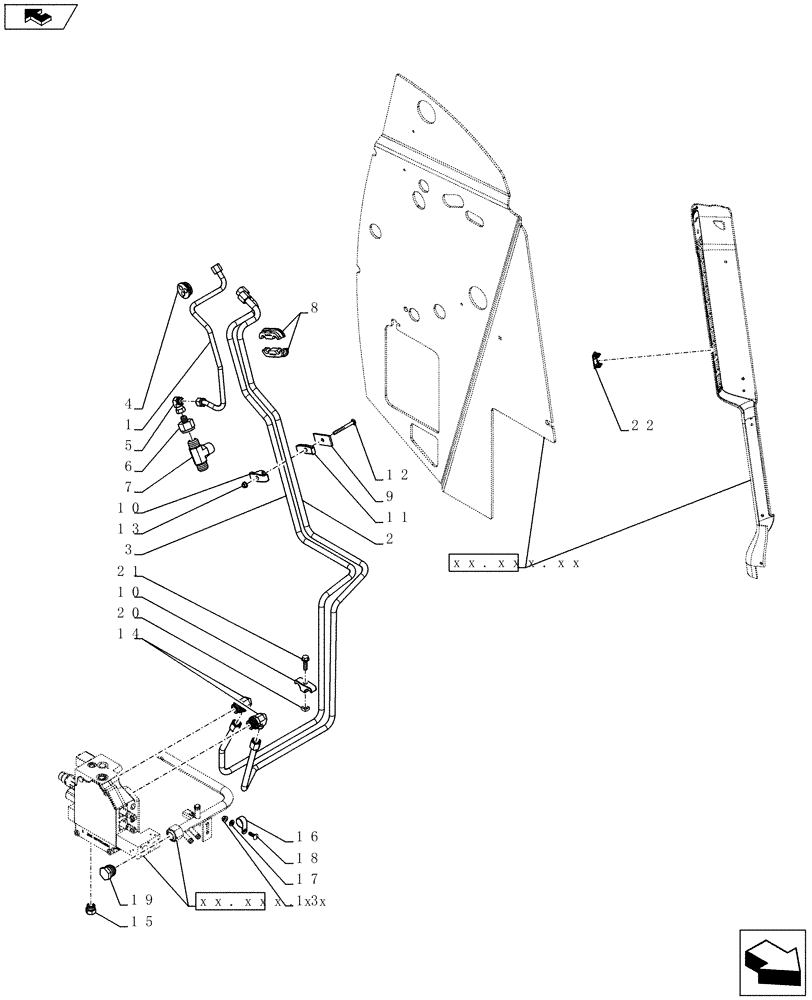

Схема запчастей Case SR150 - (35.734.AH[03]) - AUX HYD, STD, CHASSIS PLUMBING (SR130,SR150) (35) - HYDRAULIC SYSTEMS
19
20
22
9
13
2
xx.xxx.xx
10
15
home
7
14
5
11
16
12
1
10
13
17
18
21
8
6
xx.xxx.xx
3
4

Артикул

Название

Примечание

Количество

1

84382997

RIGID TUBE

Assembly, Case Drain Chassis

1шт.

2

84293518

TUBE

Assembly, Aux, LDR Valve to LFT Arm

1шт.

3

84293522

TUBE

Assembly, Aux, LDR Valve to LFT Arm

1шт.

4

84383452

GROMMET

Hyd Tube 40MM SAE-8

1шт.

5

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

6

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

37FL 1-5/16-12 X 3/4-16

1шт.

7

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

8

87018001

SUPPORT

Hyd Tube

2шт.

9

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar

1шт.

10

D120613

CLAMP,20mm ID

2шт.

11

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

12

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

SSQ M8 X 80

1шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

14

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

15

86512512

PLUG,7/8" - 14 ORB

1шт.

16

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8, 8.80 X 17.5 X 2.2 HTS

1шт.

18

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

19

9790527

PLUG,1-5/16" - 12 JIC

1шт.

20

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

21

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

1шт.

22

126844A1

PLUG,1.427” x .62” , Plastic

Cover

1шт.

Выбрано товаров: 22
