Запчасти Case SR150 (35.723.AA[01]) - BUCKET CYLINDER (SR130,SR150) UNITS BUILT BEFORE 21-DEC-2012 (35) - HYDRAULIC SYSTEMS

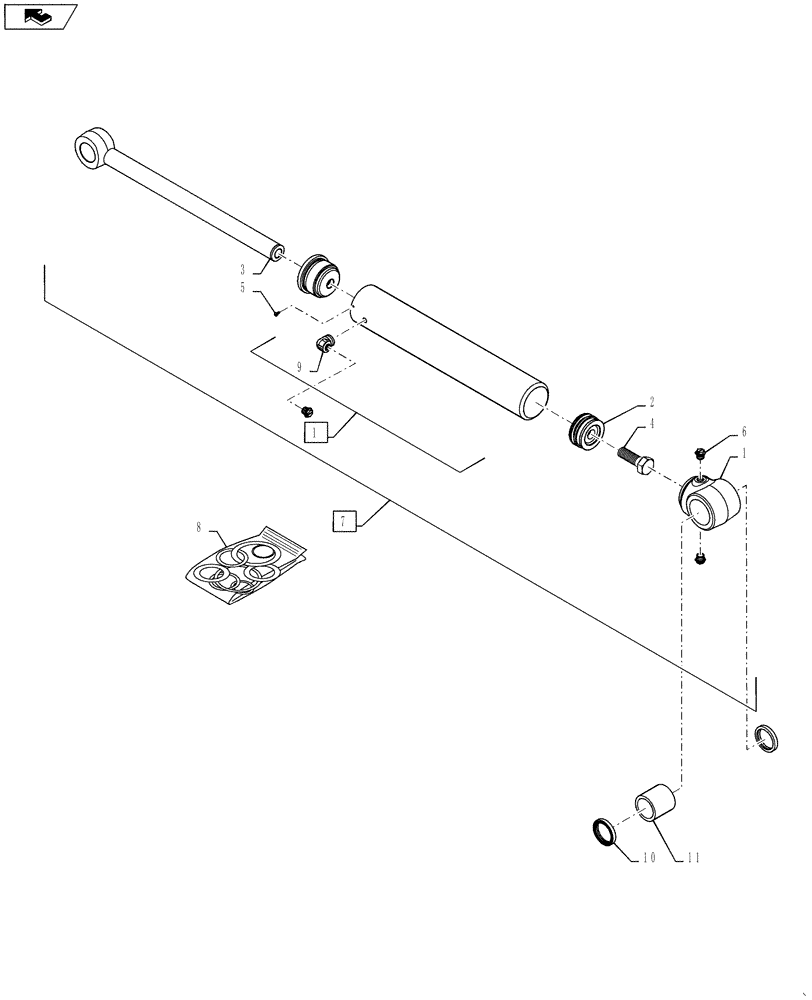

Схема запчастей Case SR150 - (35.723.AA[01]) - BUCKET CYLINDER (SR130,SR150) UNITS BUILT BEFORE 21-DEC-2012 (35) - HYDRAULIC SYSTEMS
5
9
1
4
2
home
7
11
10
6
8
3
1

Артикул

Название

Примечание

Количество

7

84231835

CYLINDER,Double Acting, 31.7mm Rod, 370.1mm Stroke

Hydraulic, Bucket, Tan, Incl. 1-6

1шт.

1

84242140

TUBE,57.23mm Bore Dia

Hydraulic, W

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland

1шт.

3

84242142

PISTON ROD/GLAND,31.7mm OD x 554.6mm L

Rod Only, Gland Incl In 7

1шт.

4

86982434

SPECIAL BOLT,3/4" - 16 x 2"

SEMS/A, 3/4 X 2.00

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

86625122

PLUG,HWH, 9/16" - 18 x 0.69" Incl NSS O-Ring

9/16-18

3шт.

8

84480961

SEAL KIT

Cylinder Repair Kit

1шт.

9

84268828

90 ELBOW

Fitting

1шт.

10

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Wiper

2шт.

11

84254784

BUSHING,38.27mm ID x 50.92mm OD x 57mm L

Composite

1шт.

12

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

Rod Eye (Not Shown)

2шт.

Выбрано товаров: 12
