Запчасти Case SR150 (35.353.AC[01]) - TRAVEL SPEED 1SPD (SR130,SR150) (35) - HYDRAULIC SYSTEMS

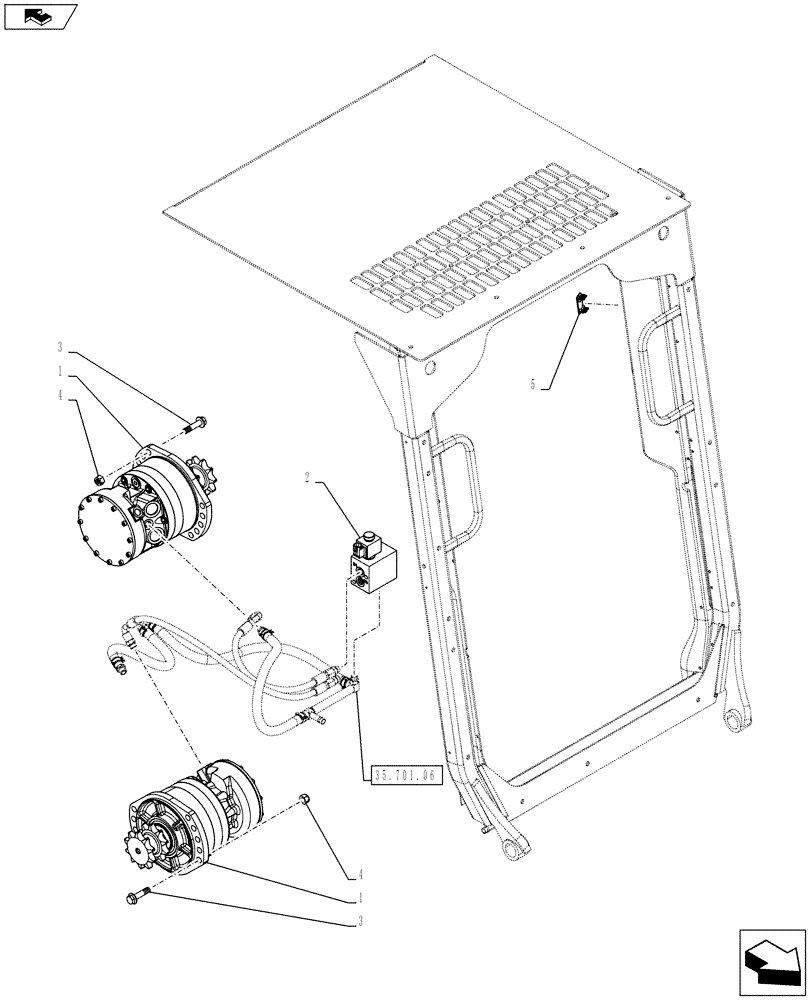

Схема запчастей Case SR150 - (35.353.AC[01]) - TRAVEL SPEED 1SPD (SR130,SR150) (35) - HYDRAULIC SYSTEMS
1
35.701.06
1
4
5
3
2
3
4
home

Артикул

Название

Примечание

Количество

1

84256614

HYDRAULIC MOTOR

325cc 1Spd W/Seal

2шт.

1

84565749R

REMAN-HYD MOTOR

SR130, SR150, both SPEED 1SPD (SR130, SR150) (4/11-), Reman for New P/N 84256614

2шт.

1

84565749C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

84256530

BRAKE VALVE

1шт.

3

87670764

BOLT,M12 x 61.8mm, Cl 10.9

16шт.

4

412672

NUT,Hex, M12 x 1.75, Cl 10

16шт.

5

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.

6

84293381

SEAL KIT

Services 1

1шт.

Выбрано товаров: 8
