Запчасти Case SR150 (29.204.AB[02]) - HYDROSTATIC PUMP, DRIVE, LINE, MECHANICAL CONTROLS (SR130,SR150) (29) - HYDROSTATIC DRIVE

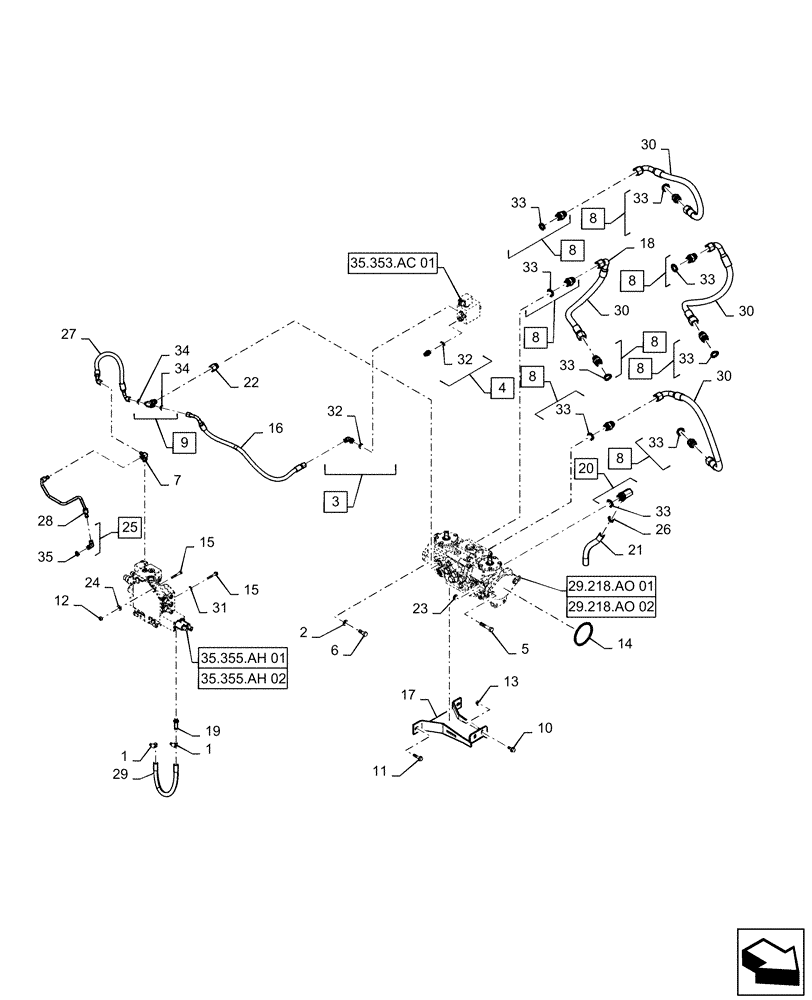

Схема запчастей Case SR150 - (29.204.AB[02]) - HYDROSTATIC PUMP, DRIVE, LINE, MECHANICAL CONTROLS (SR130,SR150) (29) - HYDROSTATIC DRIVE
33
7
32
11
34
14
15
24
2
5
8
19
30
16
33
27
31
30
4
17
33
8
25
29.218.ao 02
10
12
35.355.ah 01
32
22
28
30
35.355.ah 02
29
1
35
33
9
35.353.ac 01
15
8
33
21
33
29.218.ao 01
8
33
30
8
20
33
13
34
6
8
8
8
1
26
33
3
23
18

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 32

1шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 32

1шт.

5

280615

BOLT,1/2"-13 x 2.8.13" OAL, Cl 5, Full Thd

2шт.

6

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

7

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 33

8шт.

9

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 34

1шт.

10

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

11

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

13

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

14

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

15

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

16

84201225

HOSE ASSY.,9.53mm ID x 745mm L, SAE 100R17

Charge To Brake

1шт.

17

84254080

PLATE

Pump Support

1шт.

18

84258854

HYDRAULIC HOSE,15.88mm ID x 669mm L, SAE 100R19

Loop

3шт.

19

87314487

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

20

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 33

1шт.

21

47604820

HOSE

Pump Drain

1шт.

22

84323487

HYD CONNECTOR,7/8"-14 x 3/4"-16 ORB

1шт.

23

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

24

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

25

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 35

1шт.

26

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

27

84420320

HOSE ASSY.,9.53mm ID x 410mm L, SAE 100R17

Interlock

1шт.

28

84373389

RIGID TUBE,9.53mm OD

Aux Charge

1шт.

29

84373394

HOSE,12.7mm ID x 410mm L

Aux To Aux Drain

1шт.

30

84412421

HYDRAULIC HOSE,16mm ID x 730mm L, SAE 100R19

Loop

1шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 3, 4

2шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 8, 20

9шт.

34

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 9

1шт.

35

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 25

1шт.

Выбрано товаров: 35
