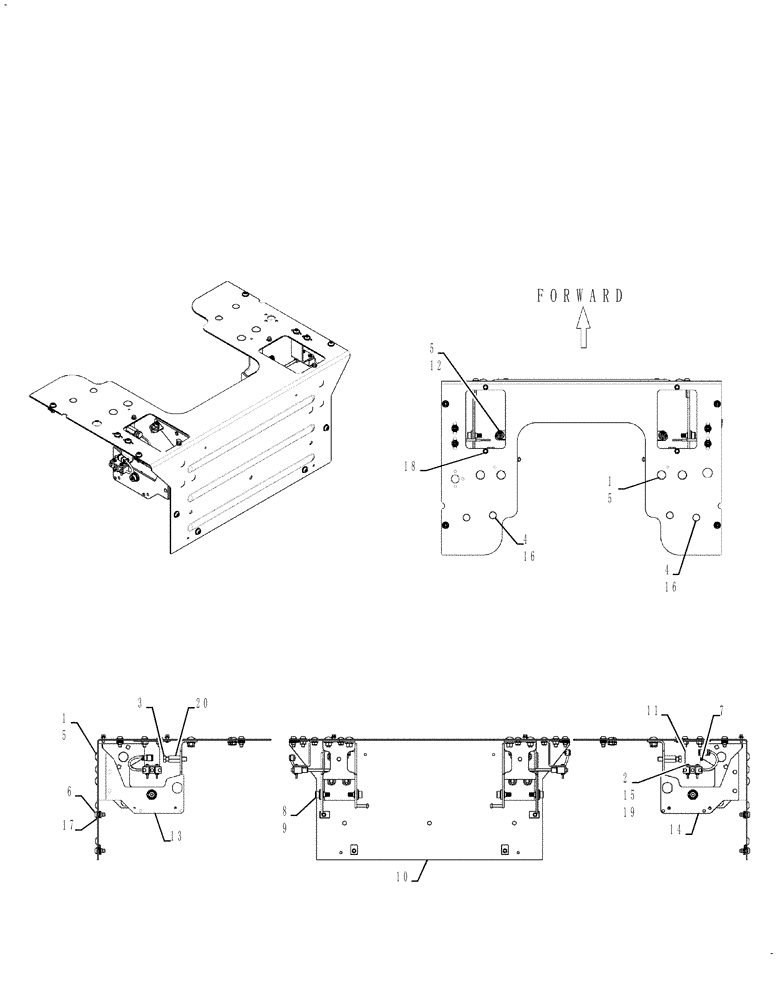

Запчасти Case SR150 (29.200.AI[09]) - HANDLE MOUNTING, SM FRAME HC (SR130,SR150) (29) - HYDROSTATIC DRIVE

1

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

10шт.

2

280859

NUT,Keps, #6-32

4шт.

3

412217

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

12шт.

6

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

12шт.

7

84239537

SWITCH

2шт.

8

84291864

BOLT,M10 x 1.5 x 28mm

Custom Shoulder Pivot

4шт.

9

84291865

BUSHING

Handle Pivot

4шт.

10

84373695

PLATE

Heel, Removable, Sm Frame HC

1шт.

11

47553741

BRACKET

Back-Up Alarm Switch, RH

1шт.

11

47553746

BRACKET

Back-Up Alarm Switch, LH

1шт.

12

84345494

SET SCREW,Hex Socket, M10 x 1.5 x 40mm, Full Thd, Cl 45H

2шт.

13

84386369

BRACKET

Handle, LH Gray

1шт.

13

47634663

MOUNT

Handle, LH Gray

1шт.

14

84386372

BRACKET

Handle, RH Gray

1шт.

14

47634845

MOUNT

Handle, RH Gray

1шт.

15

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

16

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

17

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

8шт.

18

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

4шт.

19

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

4шт.

20

130105A1

NUT,Hex Coupling, M10 x 1.5 x 30mm

2шт.

21

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

Not Illustrated, used with 18

4шт.

22

87026182

WASHER,0.53" ID x 1" OD x 0.03" Thk

Not Illustrated, used with 8 and 9

12шт.
