Запчасти Case SR150 (25.450.AA) - AXLE ASSY, SM (SR130,SR150) (25) - FRONT AXLE SYSTEM

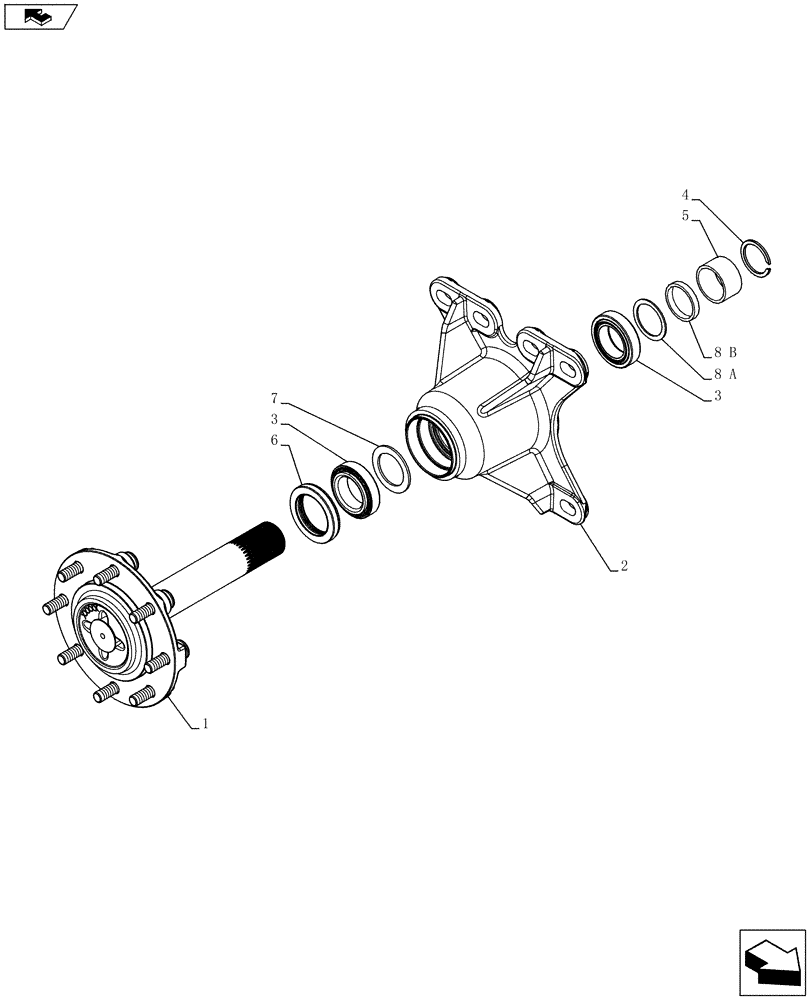

Схема запчастей Case SR150 - (25.450.AA) - AXLE ASSY, SM (SR130,SR150) (25) - FRONT AXLE SYSTEM
7
8a
5
2
3
home
1
8b
3
6
4

Артикул

Название

Примечание

Количество

1

84357928

AXLE

Sm, Incl. Ref. 9

1шт.

2

84357920

AXLE HOUSING

Sm, CE Gray

1шт.

3

84274693

TAPERED BEARING,50.8mm ID x 82.55mm OD x 21.59mm W

Bearing, Roller Tapered TM#LM104949-911

2шт.

4

84239397

SNAP RING

Ext, Hvy, 50.8MM Shaft

1шт.

5

84393914

SPACER

51 X 59 X 26.5

1шт.

6

341837A2

SEAL,63.5mm ID x 88.9mm OD x 14mm Thk

Axle

1шт.

7

84355375

DISC,51.8mm ID x 73.1mm OD x 3.2mm Thk

51.80 X 72.80 X 3.20

1шт.

8a

84393412

SPACER,51mm ID x 59mm OD x 5.3mm L

51 X 59 X 5.3/Use one 8A

1шт.

8a

84393415

SPACER,51mm ID x 59mm OD x 5.8mm L

51 X 59 X 5.8/Use one 8A

1шт.

8a

84393416

SPACER

51 X 59 X 6.3/Use one 8A

1шт.

8a

84393417

SPACER,51mm ID x 59mm OD x 6.8mm L

51 X 59 X 6.8/Use one 8A

1шт.

8b

84393476

SHIM,51mm ID x 64mm OD x 1.58mm Thk

Shim, 50.84 Shft, 1.6 T/Use one 8B

1шт.

8b

84393477

SHIM,64mm ID x 51mm OD x 1.68mm Thk

Shim, 50.84 Shft, 1.7 T/Use one 8B

1шт.

8b

84393478

SHIM,51mm ID x 64mm OD x 1.78mm Thk

Shim, 50.84 Shft, 1.8 T/Use one 8B

1шт.

8b

84393479

SHIM,51mm ID x 64mm OD x 1.88mm Thk

Shim, 50.84 Shft, 1.9 T/Use one 8B

1шт.

8b

84393480

SHIM,51mm ID x 64mm OD x 1.98mm Thk

Shim, 50.84 Shft, 2.0 T/Use one 8B

1шт.

9

84249319

STUD,Wheel, M16 x 2 x 60mm, Cl 10.9

Wheel, M16 X 2 X 60

8шт.

10

86512498

FLANGE NUT,M16 x 2, Cl 10

(Not Shown)

32шт.

10

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

M16 X 2, 90 Degree Taper, (Not Shown)

32шт.

Выбрано товаров: 19
