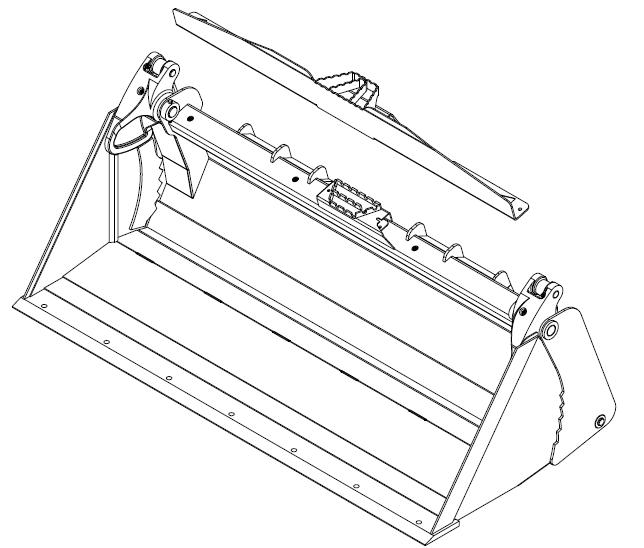

Запчасти Case SR150 (95.018.AAG) - 4 X 1 BUCKET (UTILITY), SR150 (95) - CE ATTACHMENTS

1

87648133

4 IN 1 BUCKET

66", Utility, 10.2 Ft³ Struck/14.2 Ft³ Heaped Capacity

1шт.

Std Flow Reqd

1шт.

Model Compatibility: SR130, SR150, SR160, SR175, SV185, 410, 420, 420CT

1шт.

2

87648134

4 IN 1 BUCKET

72", Utility, 11.2 Ft³ Struck/15.6 Ft³ Heaped Capacity

1шт.

Std Flow Reqd

1шт.

Model Compatibility: SR150, SR160, SR175, SV185, SR200, SR210, SR220, 410, 420, 430, 440, 420CT

1шт.

5

86577167

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1673.2mm L

66" Width, Bolt-on, Accessory Available from Case Parts

1шт.

3

87648135

GUARD

Bolt-on Spill for 66" 4 x 1 Utility Duty Bucket, Opt

1шт.

4

87648136

GUARD

Bolt-on Spill for 72" 4 x 1 Utility Duty Bucket, Opt

1шт.

6

HCE86577167

EDGE, CUTTING

66" Width, Bolt-on Rezloh™, Accessory Available from Case Parts

1шт.

7

9624721H

BAR ASSY.

66" Width, Toothbar for Bucket W/O Bolt-on Edge, Accessory Available from Case Parts

1шт.

8

86599707H

BAR ASSY.

66" Width, Toothbar for Bucket W/ Bolt-on Edge, Accessory Available from Case Parts

1шт.

9

86577169

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L

72" Width, Bolt-on, Accessory Available from Case Parts

1шт.

10

HCE86577169

EDGE, CUTTING

72" Width, Bolt-on Rezloh™, Accessory Available from Case Parts

1шт.

11

9624722H

BAR ASSY.

72" Width, Toothbar for Bucket W/O Bolt-on Edge, Accessory Available from Case Parts

1шт.

12

86599708H

BAR ASSY.

72" Width, Toothbar for Bucket W/ Bolt-on Edge, Accessory Available from Case Parts

1шт.
