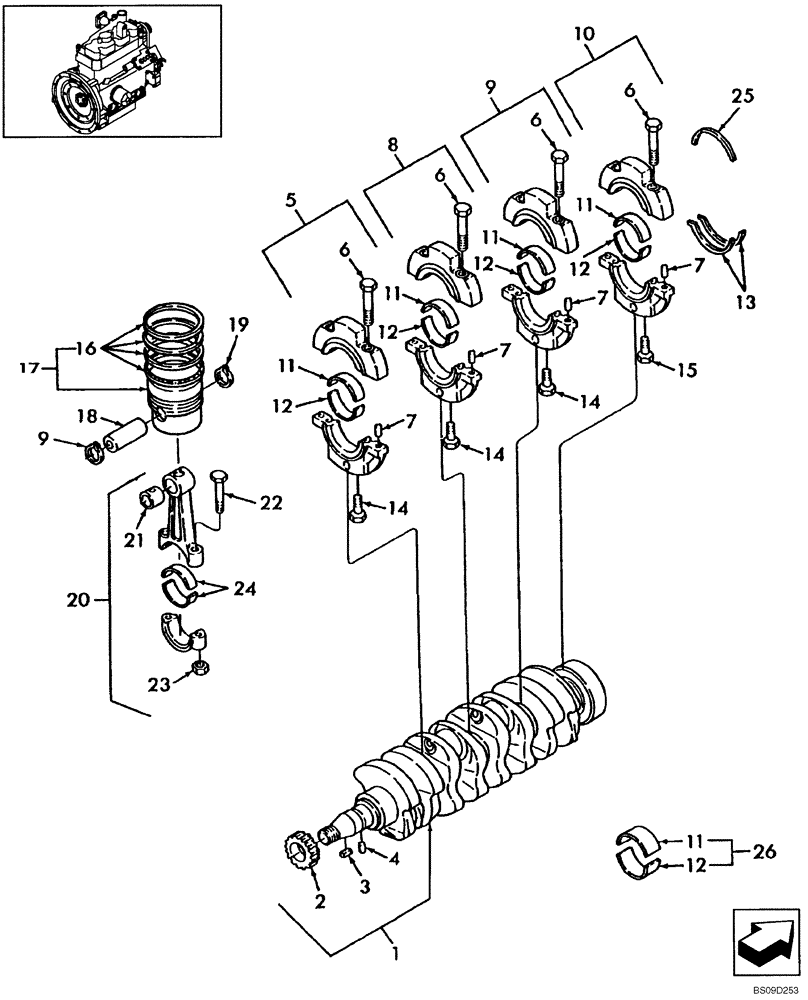

Запчасти Case SR150 (10.103.01) - CRANKSHAFT & PISTONS (10) - ENGINE

1

SBA115256630

CRANKSHAFT

1шт.

1

SBA115256631R

REMAN-CRANKSHAFT

Reman For New P/N SBA115256630

1шт.

1

SBA115256631C

CORE-CRANKSHAFT

Return Number

1шт.

2

SBA115276200

GEAR

Use with Crankshaft SBA115256630

1шт.

2

SBA115276270

GEAR

Use with Crankshaft SBA115256631

1шт.

3

SBA034100508

KEY

1шт.

4

SBA030509020

PIN

Dowel

1шт.

5

SBA110156250

HOLDER

Bearing, Incl. Ref. 6, 7

1шт.

6

SBA010109406

BOLT

8шт.

7

SBA030500612

DOWEL

8шт.

8

SBA110156171

HOLDER

Bearing, Incl. Ref. 6, 7

1шт.

9

SBA110156181

HOLDER

Bearing, Incl. Ref. 6, 7

1шт.

10

SBA110156191

HOLDER

Bearing

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Upper Journal

4шт.

12

NSS

NOT SOLD SEPARAT

Bearing, Lower Journal

4шт.

13

SBA199266200

THRUST WASHER

2шт.

14

SBA011511075

BOLT

3шт.

15

SBA010700865

BOLT,M8 x 65mm

2шт.

16

SBA115107970

SET OF RINGS

Standard, Contains a 3 MM width oil ring

4шт.

16

SBA115104020

PISTON RINGS KIT

Standard

4шт.

17

SBA115017540

PISTON & RINGS KIT

Standard

4шт.

ISM Engine N844-46-SL57

1шт.

17

SBA115017550

PISTON & RINGS KIT

Standard

4шт.

ISM Engine N844T-D-52-SL57

1шт.

18

SBA115326220

PISTON PIN,33mm OD

4шт.

19

301642

SNAP RING,M28, Int

8шт.

20

SBA115026251

CONNECTING ROD

4шт.

20

SBA115026251R

REMAN-CONNECTING ROD

4шт.

20

SBA115026251C

CORE-ROD CONNECTING

Return Number

4шт.

21

SBA198517260

BUSHING

4шт.

22

SBA115176140

BOLT

Connecting Rod

8шт.

23

SBA020109120

NUT

8шт.

24

SBA198517252

BEARING LINER,Std.

8шт.

24

SBA198517256

BEARING LINER,.25mm

U/S

8шт.

24

SBA198517259

BEARING LINER,Piston Rod, .020"

U/S

8шт.

25

SBA199266210

THRUST WASHER

1шт.

26

SBA198517232

BEARING LINER,Std., Upper

4шт.

26

SBA198517242

BEARING LINER,Std., Lower

4шт.

26

SBA198517236

BEARING LINER,.010" U/S, Upper

(0.25mm)

4шт.

26

SBA198517246

BEARING LINER,.010" U/S, Lower

(0.25mm)

4шт.

26

SBA198517239

BEARING LINER,.020" U/S, Upper

(0.50mm)

4шт.

26

SBA198517249

BEARING LINER,.020" U/S, Lower

(0.50mm)

4шт.
