(88.100.82[JP7]) - KIT DISTRIBUTOR PIN AND BOLT BOX PACK

Запчасти Case SR150 (88.100.82[JP7]) - KIT DISTRIBUTOR PIN AND BOLT BOX PACK (88) - ACCESSORIES

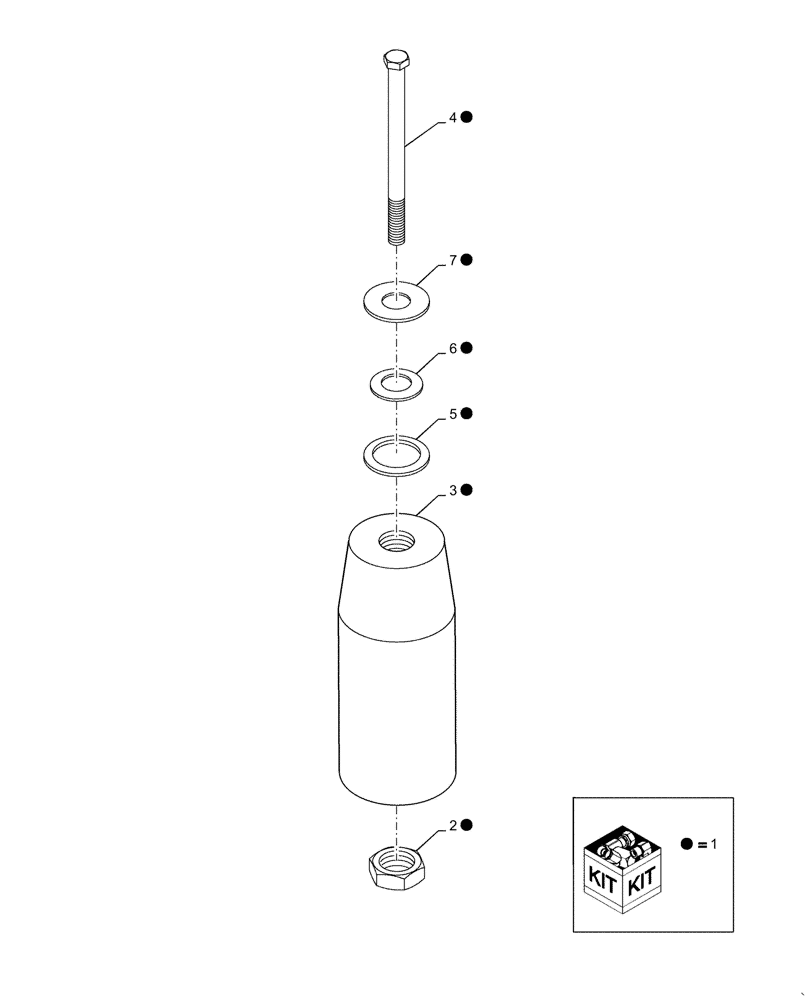

Схема запчастей Case SR150 - (88.100.82[JP7]) - KIT DISTRIBUTOR PIN AND BOLT BOX PACK (88) - ACCESSORIES
6
4
2
7
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87299130

DISTRIBUTOR

Incl 2 - 7

1шт.

2

86992215

LOCK NUT,1/2"-13, GC

2шт.

3

86591515

PIN,38.1mm OD x 92mm L

2шт.

4

86505996

BOLT,Hex, 1/2" - 13 x 7", Gr 5

2шт.

5

81900328

WASHER,38.48mm ID x 57.15mm OD x 2.9mm Thk

4шт.

6

695335

WASHER,12.95mm ID x 37.59mm OD x 4.75mm Thk

2шт.

7

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.
