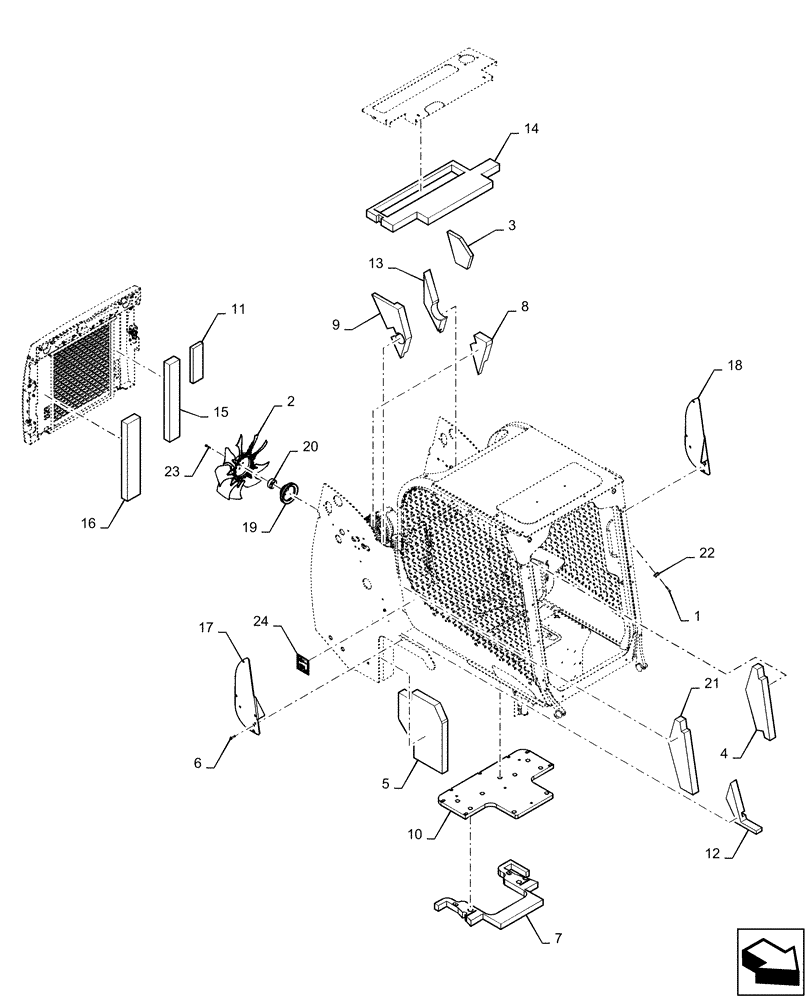

Запчасти Case SR150 (88.100.10[12]) - ENGINE ACCESSORIES EU/OPEN EU SR150 (88) - ACCESSORIES

1

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

1шт.

2

47414133

FAN

1шт.

3

47522827

FOAM INSULATION

Tower Rear LH

1шт.

4

47522829

FOAM INSULATION

Tower Rear LH

1шт.

5

47637596

FOAM INSULATION

Counterweight

1шт.

6

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

7

84366352

FOAM INSULATION

RH Tower Upper

1шт.

8

84366354

FOAM INSULATION

Tower Upper RH

1шт.

9

84366356

FOAM INSULATION

Tower Upper Rear RH

1шт.

10

84372040

FOAM

Seat Pan, Only for Open Cab

1шт.

11

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

12

84373799

FOAM INSULATION

Tower Lower RH

1шт.

13

84373800

FOAM INSULATION

Tower Rear LH

1шт.

14

84374185

FOAM INSULATION

Panel Cover

1шт.

15

84374541

FOAM INSULATION

Rear Door LH

1шт.

16

84374542

FOAM INSULATION

Rear Door RH

1шт.

17

84383823

COVER

Chassis Vent, LH

1шт.

18

84383826

COVER

Chassis Vent, RH

1шт.

19

84388643

PULLEY,136.73mm OD

1шт.

20

84513656

SPACER,21.1mm W

1шт.

21

84540795

FOAM INSULATION

Tower RH

1шт.

22

86511444

FLANGE NUT,Hex, M6 x 1

1шт.

23

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

24

87353967

DECAL,LWA 101DB, 100mm x 110 mm

1шт.
