Запчасти Case SR150 (55.100.01[01]) - ELECTRIC - ENGINE (55) - ELECTRICAL SYSTEMS

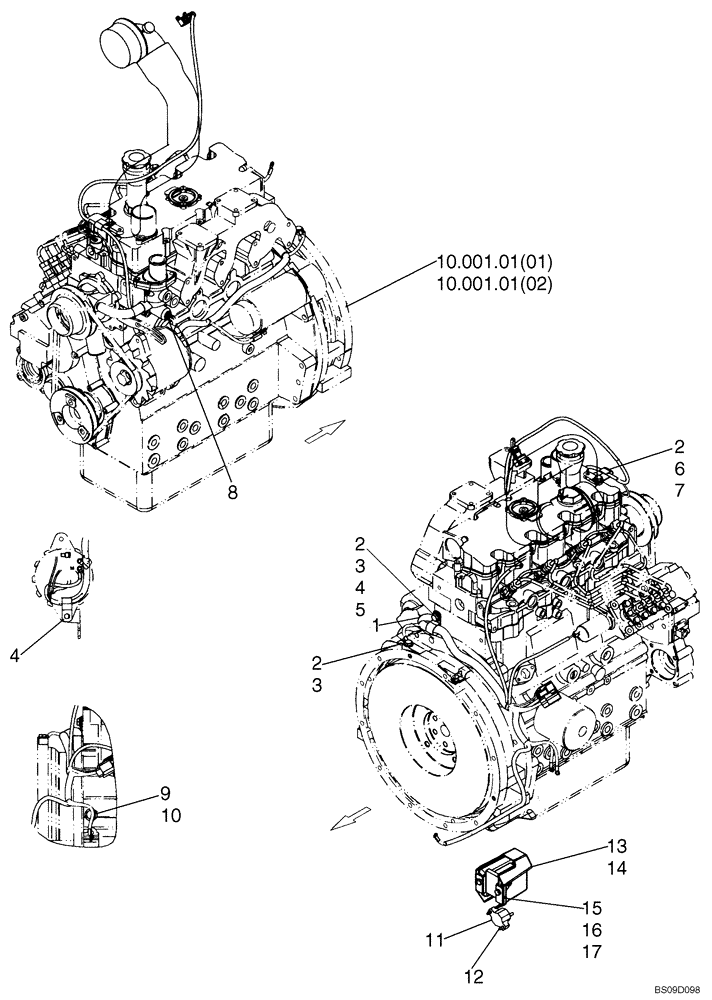

Схема запчастей Case SR150 - (55.100.01[01]) - ELECTRIC - ENGINE (55) - ELECTRICAL SYSTEMS
2
12
3
10.001.01(01)
8
2
1
2
16
14
17
4
10.001.01(02)
9
10
4
3
7
11
13
15
5
6

Артикул

Название

Примечание

Количество

1

87462056

HARNESS

ISM Engine

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

3

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

4

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

Clamp; Insulated 22.2 mm, 3/8 in. Bolt ZND

2шт.

5

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

6

134579

WIRE CLAMP,J

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

87307746

TEMPERATURE SENDER,3/8" - 18 NPT

Hyd Oil And Engine Coolant Temp Sensor

1шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

10

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

11

9843910

CIRCUIT BREAKER,50A

1шт.

12

86500940

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

2шт.

13

9612631

COVER

1шт.

14

9612633

SHIELD

1шт.

15

9601073

RELAY,12V, 80A

1шт.

16

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

17

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

Выбрано товаров: 17
