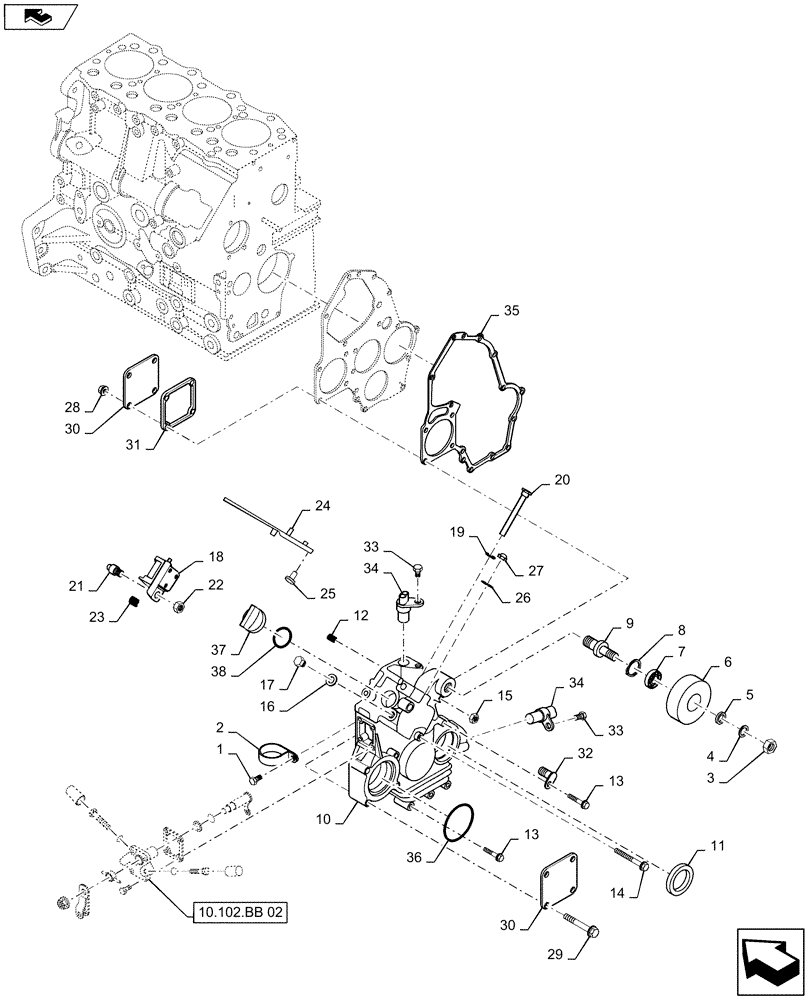

Запчасти Case SR130 (10.102.BB[01]) - TIMING GEAR HOUSING AND RELATED PARTS (10) - ENGINE

1

SBA198686550

PULLEY

1шт.

2

SBA399113620

CLAMP

1шт.

3

SBA020700012

NUT

1шт.

4

SBA027100012

WASHER

1шт.

5

SBA199236600

COLLAR

1шт.

6

SBA198686550

PULLEY

1шт.

7

SBA040109106

BALL BEARING

1шт.

8

SBA036500037

SNAP RING

1шт.

9

SBA165466230

SHAFT

1шт.

10

SBA165107170

HOUSING

1шт.

11

SBA198636160

SEAL,M35 x 55 x 11

1шт.

12

SBA198217880

SPRING

1шт.

13

SBA011310640

CAPTIVE WASHER SCREW,Hex, M6 x 40, Cl 8.8

8шт.

14

SBA011310660

BOLT

4шт.

15

SBA023100006

NUT

1шт.

16

SBA025100010

SEALING WASHER,9.2mm ID x 17mm OD x 1.8mm Thk

1шт.

17

SBA010109668

PLUG

1шт.

18

SBA125046613

GOVERNOR

1шт.

19

SBA052100080

O-RING

1шт.

20

SBA125116300

SHAFT

1шт.

21

SBA131046531

SENSOR

1шт.

22

SBA020800010

BOLT

1шт.

23

SBA198217842

SPRING

1шт.

24

SBA125306151

LEVER

1шт.

25

SBA125116211

SHAFT

1шт.

26

SBA025100006

SEALING WASHER,5.5mm ID x 13mm OD x 1.15mm Thk

1шт.

27

SBA024500006

NUT

1шт.

28

SBA023100008

NUT

4шт.

29

SBA010310865

BOLT

4шт.

30

SBA165206010

COVER

2шт.

31

SBA165996610

GASKET

1шт.

32

SBA399113630

CLAMP

1шт.

33

SBA011150616

BOLT

2шт.

34

SBA185746140

SENSOR

2шт.

35

SBA165996550

GASKET

1шт.

36

SBA052300600

O-RING,G60

1шт.

37

SBA398430630

CAP

1шт.

38

SBA052100280

O-RING

1шт.
