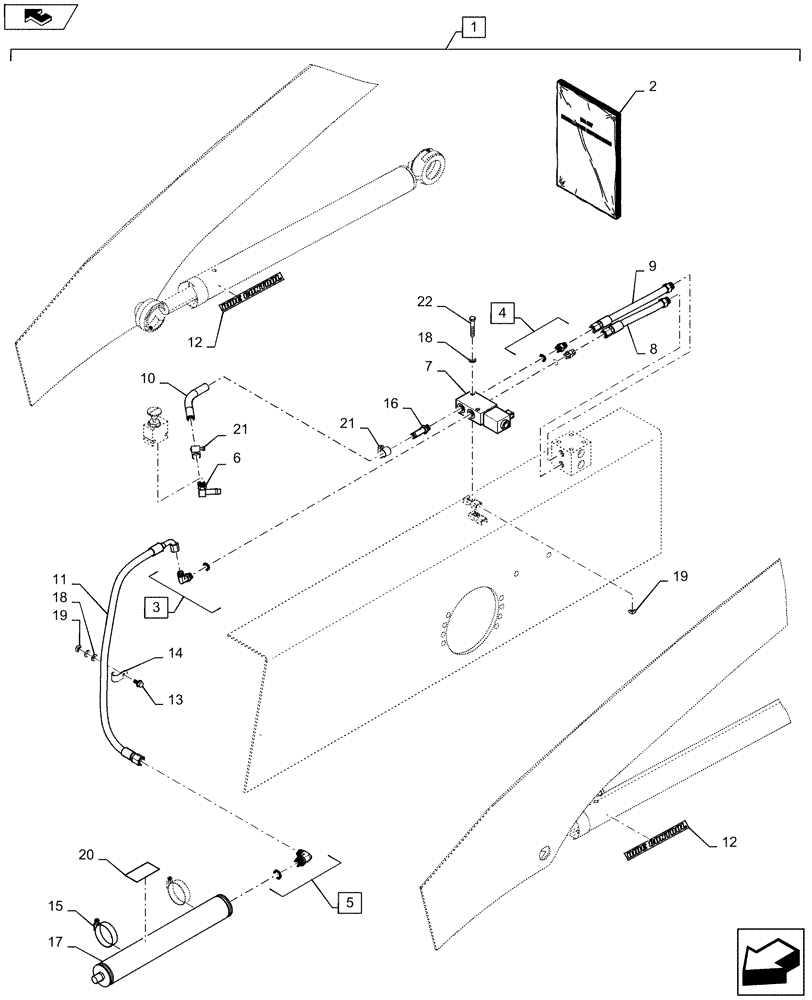

Запчасти Case SR130 (88.035.01) - DIA KIT, RIDE CONTROL, CASE SMALL FRAME (88) - ACCESSORIES

1

47382259

SERVICE KIT

Ride Control, Incl 2 - 22

1шт.

2

47382257

INSTRUCTION

Installation, Ride Control Case

1шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

6

84187294

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

1/2" Hose Barb x 1/2" Hose Barb x 9/16" ORB

1шт.

7

84256404

HYDRAULIC VALVE

Ride Control

1шт.

8

84319927

HOSE ASSY.,9.53mm ID x 245mm L, SAE 100R17

Ride Control Valve To Manifold

1шт.

9

84319928

HOSE ASSY.,9.53mm ID x 260mm L, SAE 100R17

Ride Control Valve To Manifold

1шт.

10

84375903

HOSE,12.7mm ID x 154mm L

Ride Control Valve To Boom Override

1шт.

11

84375904

HOSE ASSY.,9.53mm ID x 790mm L, SAE 100R17

Ride Control Valve To Accumlator

1шт.

12

84493112

DECAL

Ride Control

2шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

14

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

Closed

1шт.

15

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

16

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

17

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

20

328903A1

DECAL

Accumulator

1шт.

21

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

22

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.
