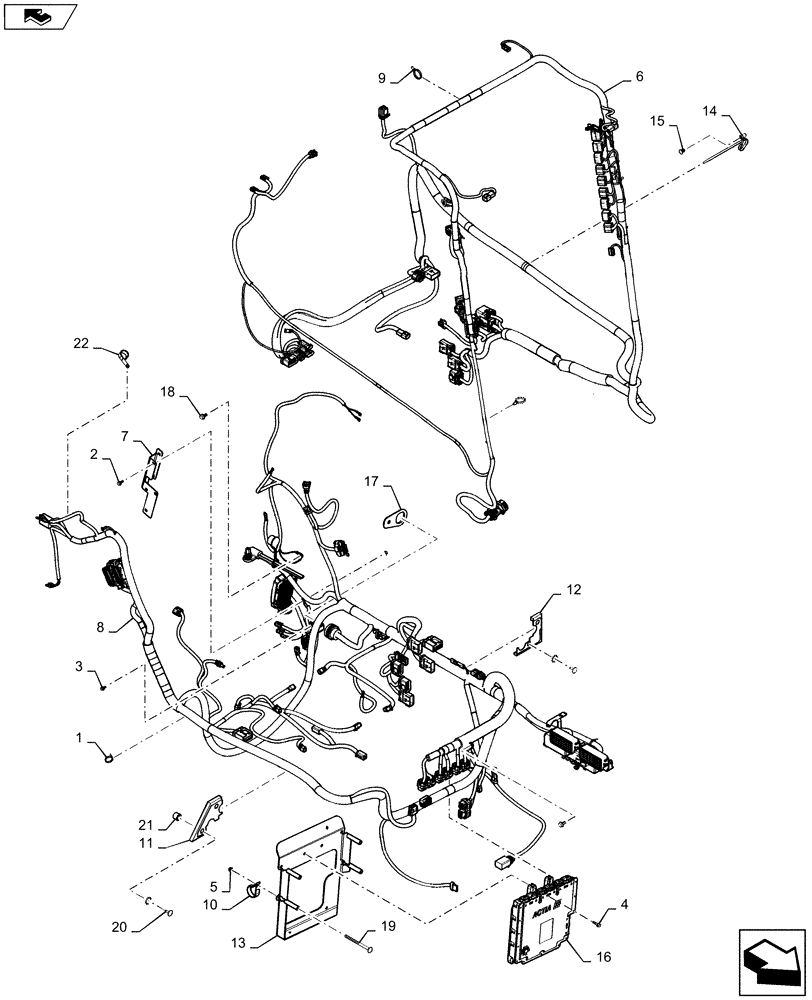

Запчасти Case SR130 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (24-AUG-2015 & PRIOR) (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

2

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

4

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

11шт.

6

47385476

WIRE HARNESS

Cab E-H

1шт.

7

47448709

BRACKET

Relay Mounting

1шт.

8

47523491

WIRE HARNESS

Chassis E-H

1шт.

9

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree

1шт.

10

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

38.1mm

2шт.

11

84323728

SEAL

Assy, LH

1шт.

12

84323729

SEAL

Assy, LH

1шт.

13

84332287

BRACKET

ECM

1шт.

14

84420746

CABLE TIE,403.9mm L, Nylon

0.50" DIA

40шт.

15

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

40шт.

16

84529539

ECU

UCM

1шт.

16

84529539R

REMAN ELECT CONTROL

Reman For New P/N 84529539

1шт.

16

84529539C

CORE-ELECTRONIC CONT

Return Number

1шт.

17

84541427

BRACKET

Engine Harness

1шт.

18

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

19

86512442

CARRIAGE BOLT,Sht Sq Nk, M6 x 80mm, Cl 8.8

M6 X 80

4шт.

20

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

21

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

22

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.
