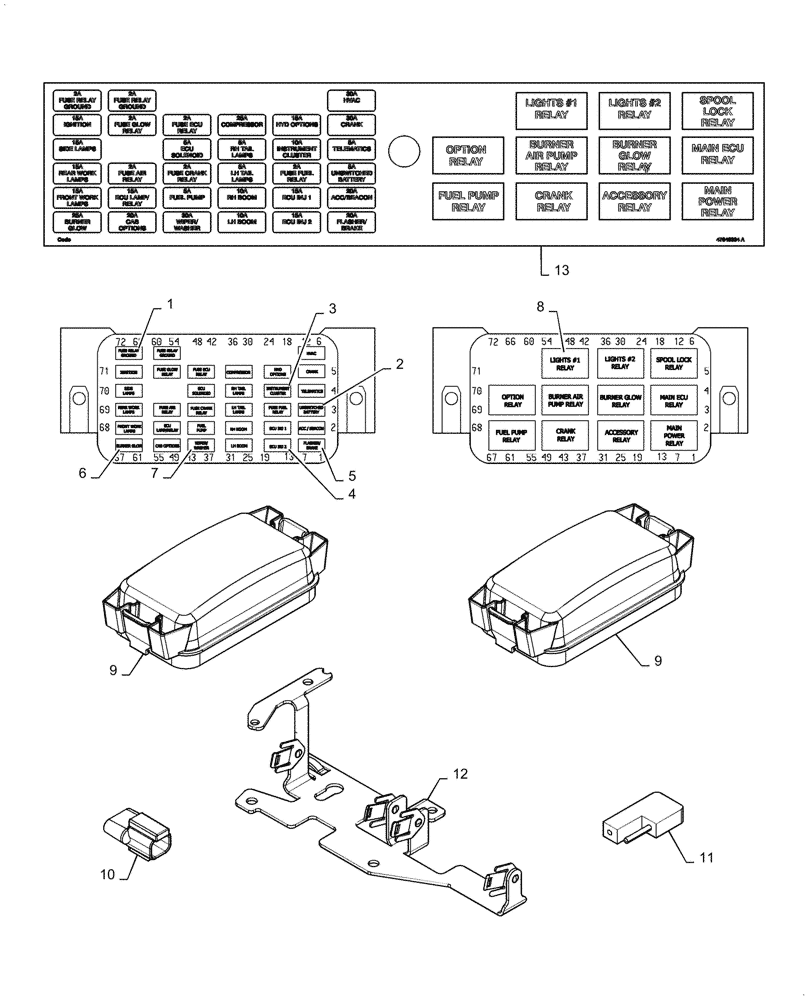

Запчасти Case SR130 (55.100.DO[01]) - FUSE & RELAY, MECHANICAL CONTROLS (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

1

84153828

FUSE,2A, Mini, Gray

7шт.

2

84153830

FUSE,5A, Mini, Beige

6шт.

3

84127702

FUSE,10A, Mini, Red

3шт.

4

84127703

FUSE,15A, Mini, Blue

8шт.

5

84127704

FUSE,20A, Mini, Yellow

3шт.

6

84127705

FUSE,25A, Mini, White

2шт.

7

84127708

FUSE,30A, Mini, Green

3шт.

8

87696396

RELAY,12V, 35A, Micro

10шт.

9

84255450

FUSE BOX

Cover

2шт.

10

84535086

DIODE

Relay

3шт.

11

L71879

DIODE ELEMENT,400V, 3A

Ignition Backfeed

1шт.

12

47362403

BRACKET, SUPPORTING

Fuse Box

1шт.

13

47946334

DECAL

Fuse Box Layout, Mech

1шт.
