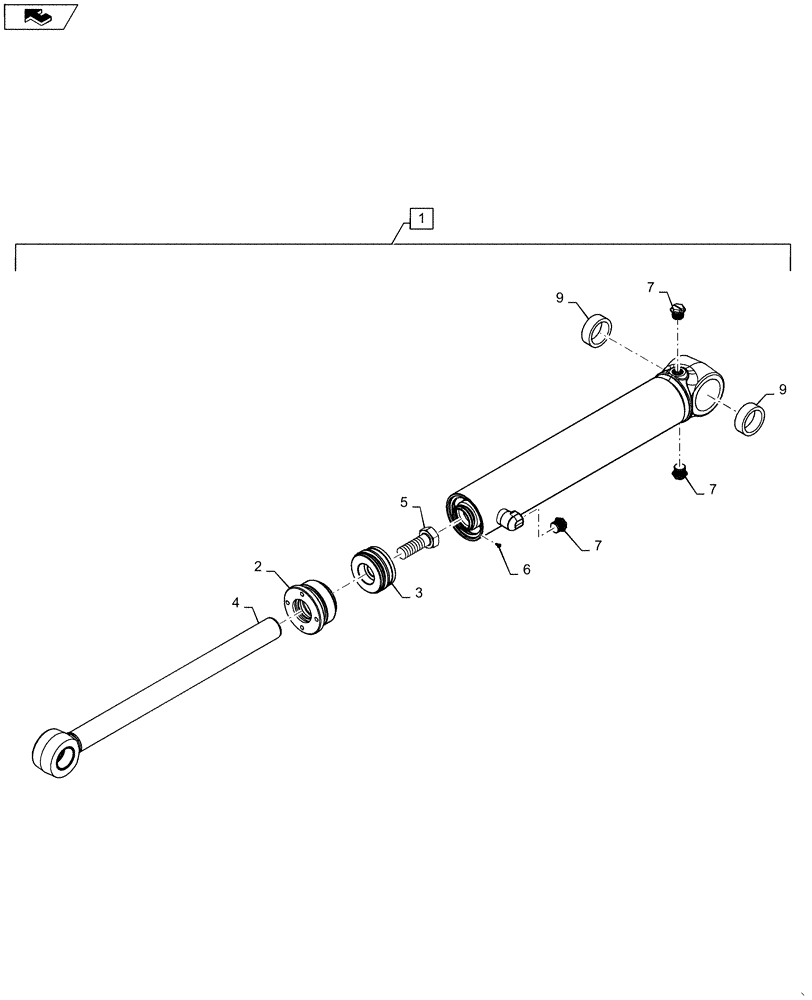

Запчасти Case SR130 (35.723.AA) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

47364450

HYDRAULIC CYLINDER,Double Acting, 31.7mm Rod, 370.1mm Stroke

Bucket Cylinder, Complete, Incl 2 - 9

1шт.

2

87664133

31.8mm Rod, 57.2mm Bore

1шт.

3

47364486

GLAND,57.2mm Bore, 31.8mm Rod, 50.2mm W

31.8mm Rod, 57.2mm Bore

1шт.

4

84242142

PISTON ROD/GLAND,31.7mm OD x 554.6mm L

31.8mm Rod

1шт.

5

86982434

SPECIAL BOLT,3/4" - 16 x 2"

Locking

1шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625122

PLUG,HWH, 9/16" - 18 x 0.69" Incl NSS O-Ring

3шт.

8

47364495

SEAL KIT

Bucket Cylinder, Not Illustrated

1шт.

9

47364473

BUSHING,38.27mm ID x 50.92mm OD x 19mm L

1-1/2" ID x 2-1/4" OD x 3/4" Wide

2шт.
