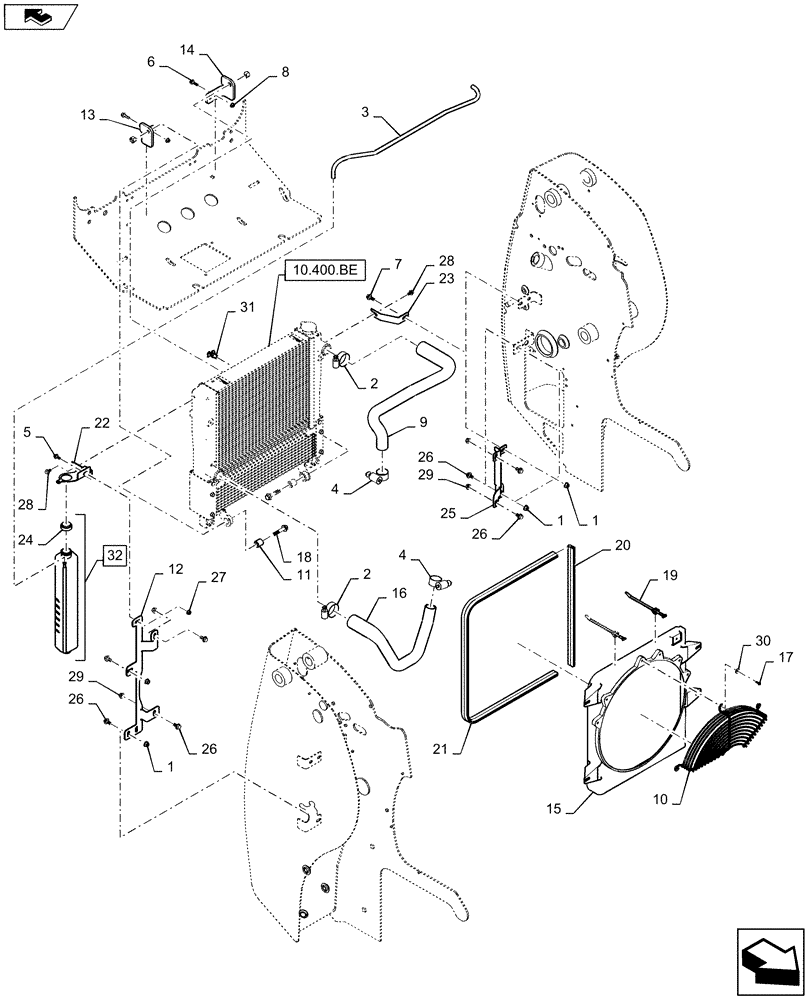

Запчасти Case SR130 (10.400.AY) - RADIATOR & RELATED PARTS (10) - ENGINE

1

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

3

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

2.85ft

1шт.

4

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

7

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

47367205

RADIATOR HOSE

Radiator Upper

1шт.

10

47376067

GUARD

Fan

1шт.

11

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

Hinge Pivot

2шт.

12

47410491

BRACKET

Fan Shroud, RH

1шт.

13

47467592

MOUNT

Lower Radiator, RH

1шт.

14

47467596

MOUNT

Lower Radiator, LH

1шт.

15

47476009

SHROUD

450mm, Fan

1шт.

16

47483600

RADIATOR HOSE

Lower

1шт.

17

84137412

SCREW,Hex Flng, M6 x 18mm

M6 X 18mm

3шт.

18

87301277

BOLT,M12 x 71.8mm, Cl 10.9

2шт.

19

84259663

CABLE TIE,228.6mm L, Nylon, Black

228mm

2шт.

20

84277010

RUBBER SEAL,576.1mm L

576mm, Bulb

1шт.

21

84285059

RUBBER SEAL,1553mm L

1553mm, Bulb

1шт.

22

84344026

BRACKET

Coolant Bottle, Upper

1шт.

23

84344029

BRACKET

Radiator Mount

1шт.

24

257884A1

CAP

Reservoir, Incl In 32

1шт.

25

84552138

BRACKET

Fan Shroud, LH

1шт.

26

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

7шт.

27

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

28

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

29

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

30

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

31

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Drain Fuel

1шт.

32

87020980

BOTTLE,2L

Bottle

1шт.
