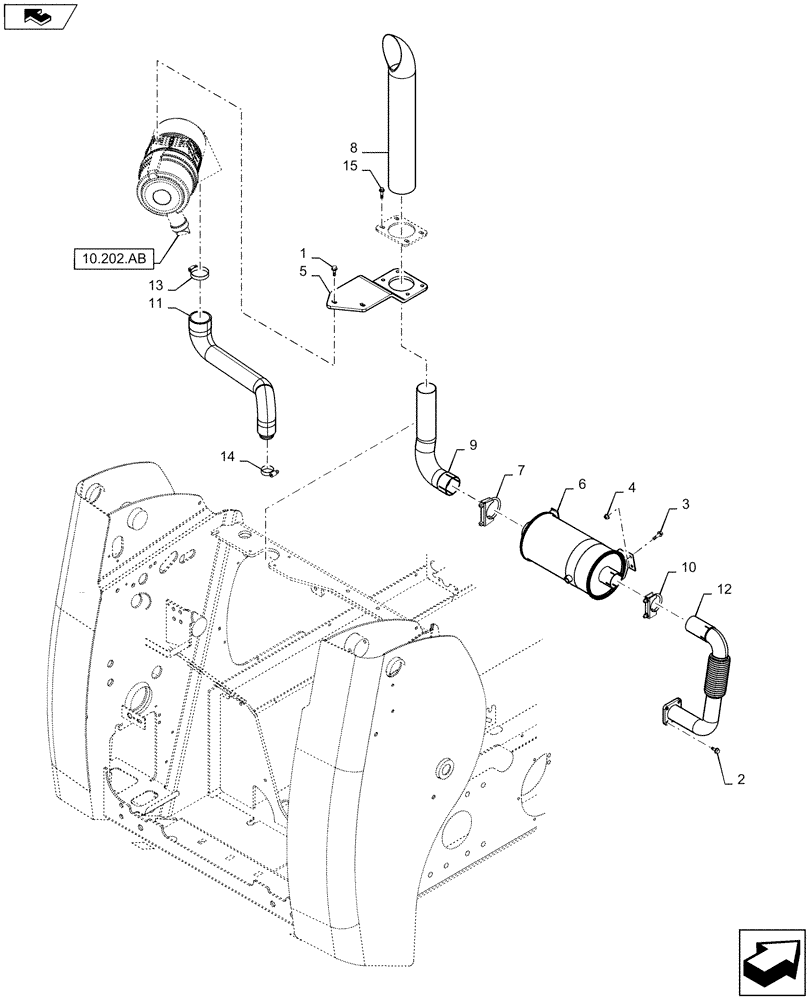

Запчасти Case SR130 (10.254.AI) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE

1

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

47515485

BRACKET

Air Cleaner, Gray

1шт.

6

84287171

MUFFLER,Aspirated

Bilen ISM

1шт.

7

87461995

CLAMP,68mm ID, Muffler

1шт.

8

84518091

EXHAUST SYSTEM PIPE

Exhaust Stack

1шт.

9

84578937

TUBE

Muffler To Tailpipe

1шт.

10

84588569

CLAMP,54mm ID, Muffler

1шт.

11

84592935

HOSE

Intake Air

1шт.

12

84593055

EXHAUST SYSTEM PIPE

Exhaust Felxible

1шт.

13

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

1шт.

14

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

15

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

4шт.
