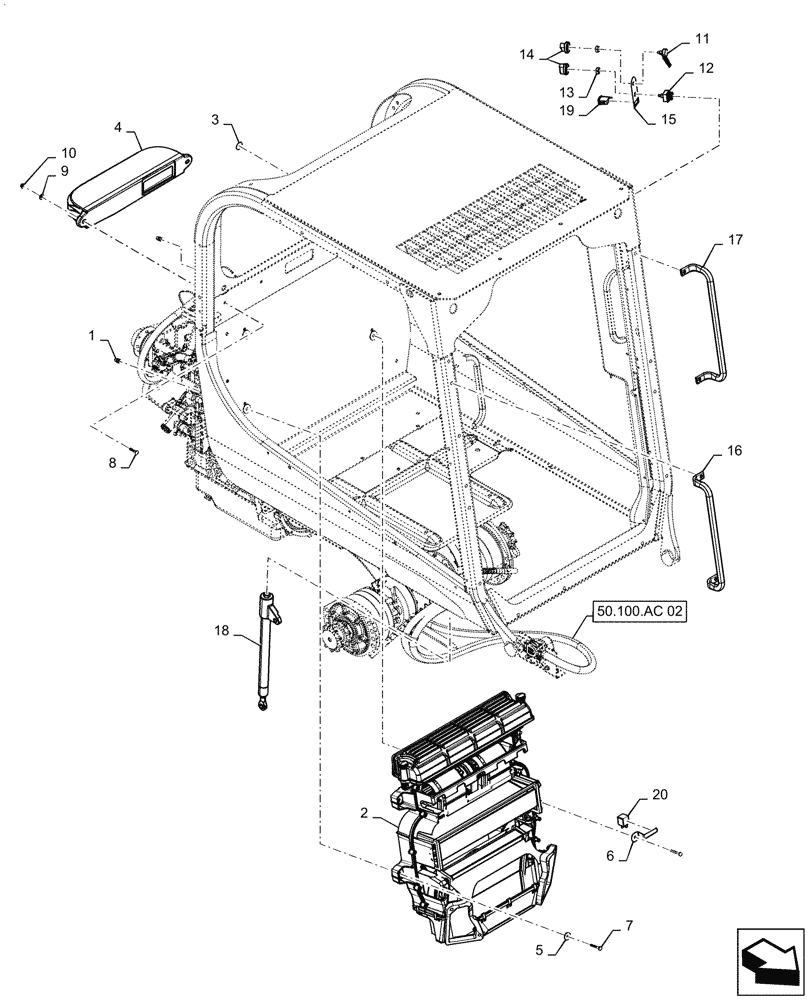

Запчасти Case SR130 (50.100.AP[03]) - CAB COMPONENTS, HEATER W/ AIR CONDITIONING (50) - CAB CLIMATE CONTROL

1

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

2

47984178

HEATER

W/ A/C Assy

1шт.

3

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan

2шт.

4

84280313

AIR DUCT

Intake

1шт.

5

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

6

84380240

BRACKET

Relay

1шт.

7

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

8

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

10

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

11

86729675

SWITCH,5000 Ohm

Tempurature

1шт.

12

86729669

SWITCH

Blower

1шт.

13

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

14

86729670

KNOB

Switch

2шт.

15

84347258

DECAL

HVAC

1шт.

16

84359879

HANDLE

RH, Front Cab, Gray

1шт.

17

84354286

HANDLE

LH, Front Cab, Gray

1шт.

18

47537889

GAS STRUT,372mm Extended, 327mm Compressed

Enclosed Cab

1шт.

19

87555249

SWITCH

A/C

1шт.

20

87355337

RELAY,12V, 45A

1шт.
