Запчасти Case SR130 (35.701.CB) - BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

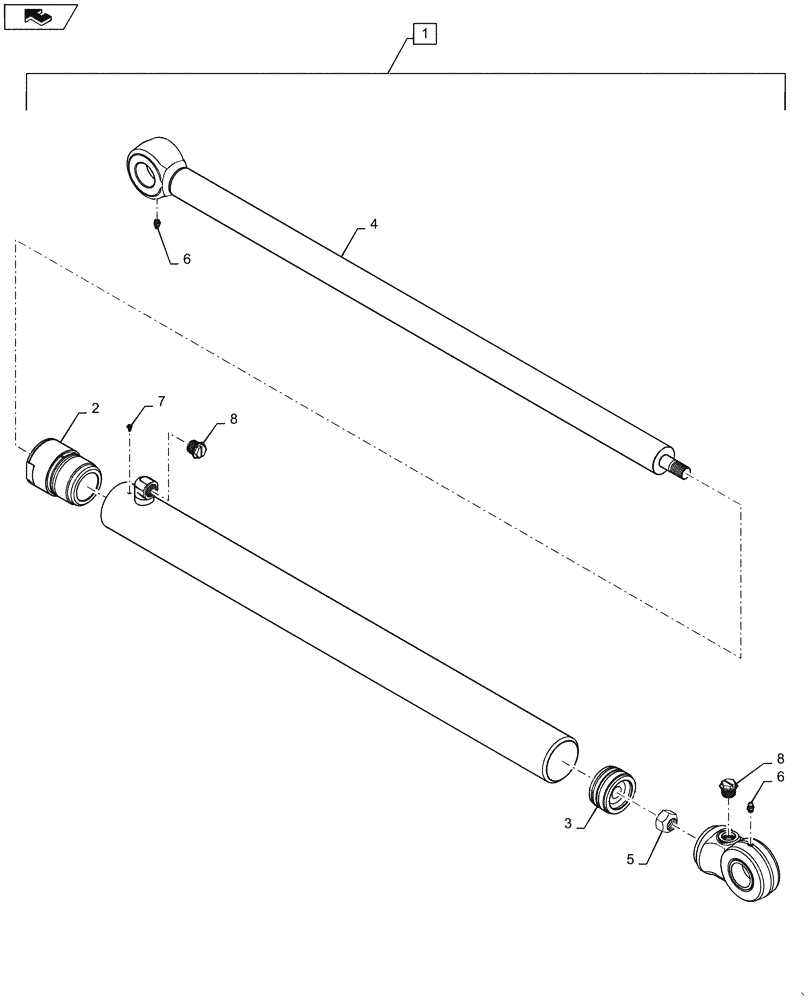

Схема запчастей Case SR130 - (35.701.CB) - BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
1
8
7
4
home
2
5
3
6
6
8

Артикул

Название

Примечание

Количество

1

47364867

HYDRAULIC CYLINDER,Double Acting, 34.9mm Rod, 645mm Stroke

Boom Lift Cylinder, Complete, Incl 2 - 9

1шт.

2

47364896

GLAND,57.2mm Bore, 34.9mm Rod, 92.6mm W

Boom Lift Cylinder, 34.9mm Rod, 57.2mm Bore

1шт.

3

84241627

PISTON ROD/GLAND,56.71mm Bore, 35mm Rod, 37.15mm W

Boom Lift Cylinder, 34.9mm Rod, 57.2mm Bore

1шт.

4

47364901

ROD,34.9mm OD x 939.47mm L

Boom Lift Cylinder, 34.9mm Rod

1шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

7

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

8

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4" - 16

2шт.

9

47364910

SERVICE KIT

Boom Lift Cylinder, Not Illustrated

1шт.

Выбрано товаров: 9
