(55.302.AI[02]) - NO BATTERY DISCONNECT SM (SR130,SR150)

Запчасти Case SR130 (55.302.AI[02]) - NO BATTERY DISCONNECT SM (SR130,SR150) (55) - ELECTRICAL SYSTEMS

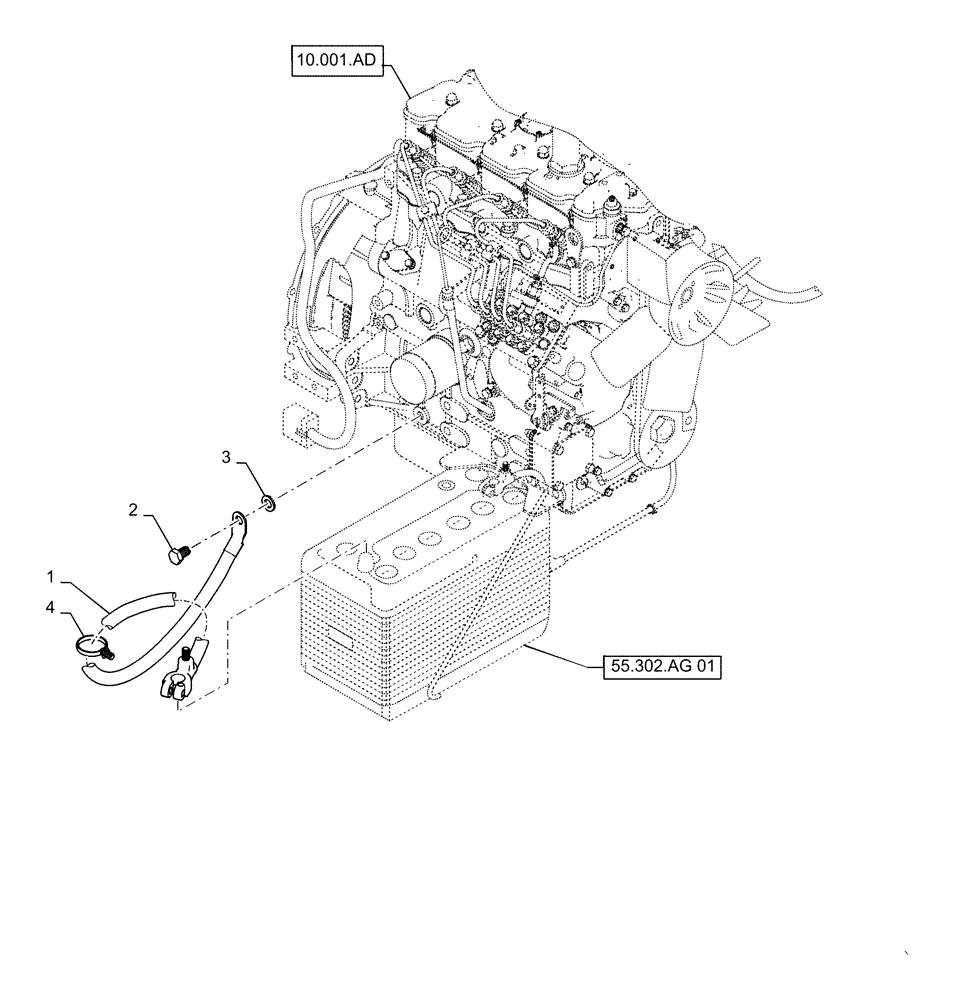

Схема запчастей Case SR130 - (55.302.AI[02]) - NO BATTERY DISCONNECT SM (SR130,SR150) (55) - ELECTRICAL SYSTEMS
10.001.ad
1
2
3
4
55.302.ag 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84294613

GROUND CABLE,885.5mm L

SM

1шт.

2

15976921

BOLT,Hex, M14 x 1.5 x 22mm, Cl 8.8, Full Thd

Screw

1шт.

3

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

1шт.

4

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

1шт.

Выбрано товаров: 4
