(55.101.AC[01]) - CHASSIS OPTIONS HARNESS, MECH SM (SR130, SR150)

Запчасти Case SR130 (55.101.AC[01]) - CHASSIS OPTIONS HARNESS, MECH SM (SR130, SR150) (55) - ELECTRICAL SYSTEMS

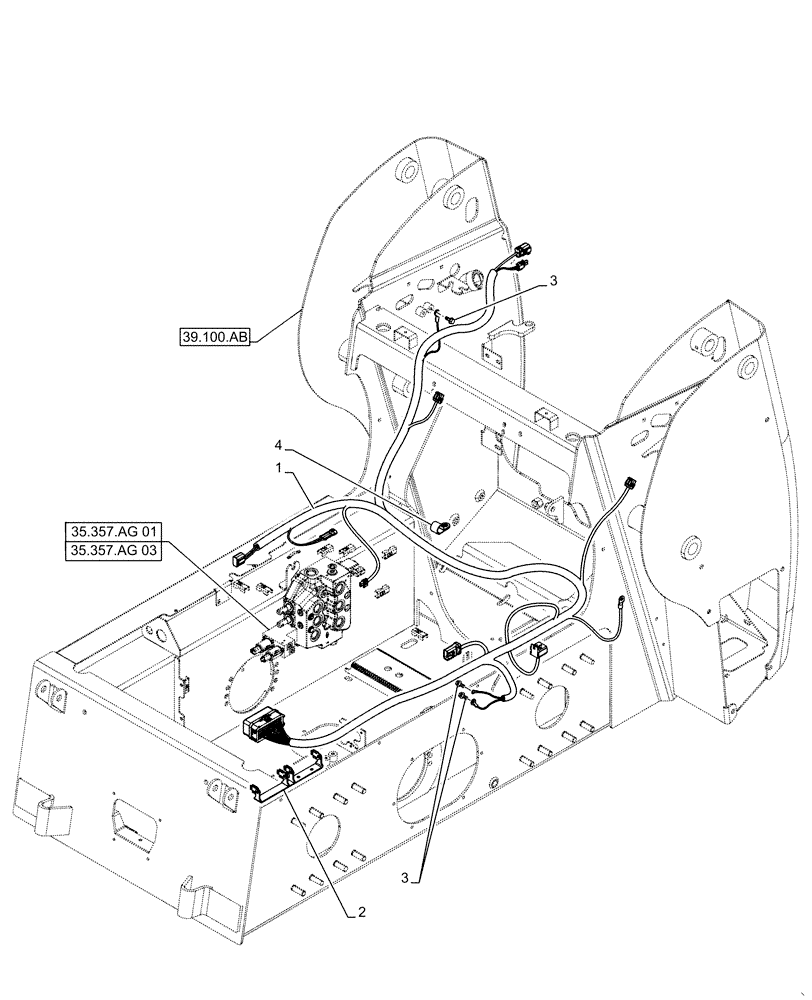

Схема запчастей Case SR130 - (55.101.AC[01]) - CHASSIS OPTIONS HARNESS, MECH SM (SR130, SR150) (55) - ELECTRICAL SYSTEMS
3
35.357.ag 03
39.100.ab
1
2
35.357.ag 01
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84239635

WIRE HARNESS

Chassis Option, Serial Range: -NBM441578

1шт.

1

84605455

WIRE HARNESS

Chassis Option, Start Serial: NBM441578

1шт.

2

84285504

BRACKET, SUPPORTING

Double Fuse Box

1шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

4

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

Выбрано товаров: 5
