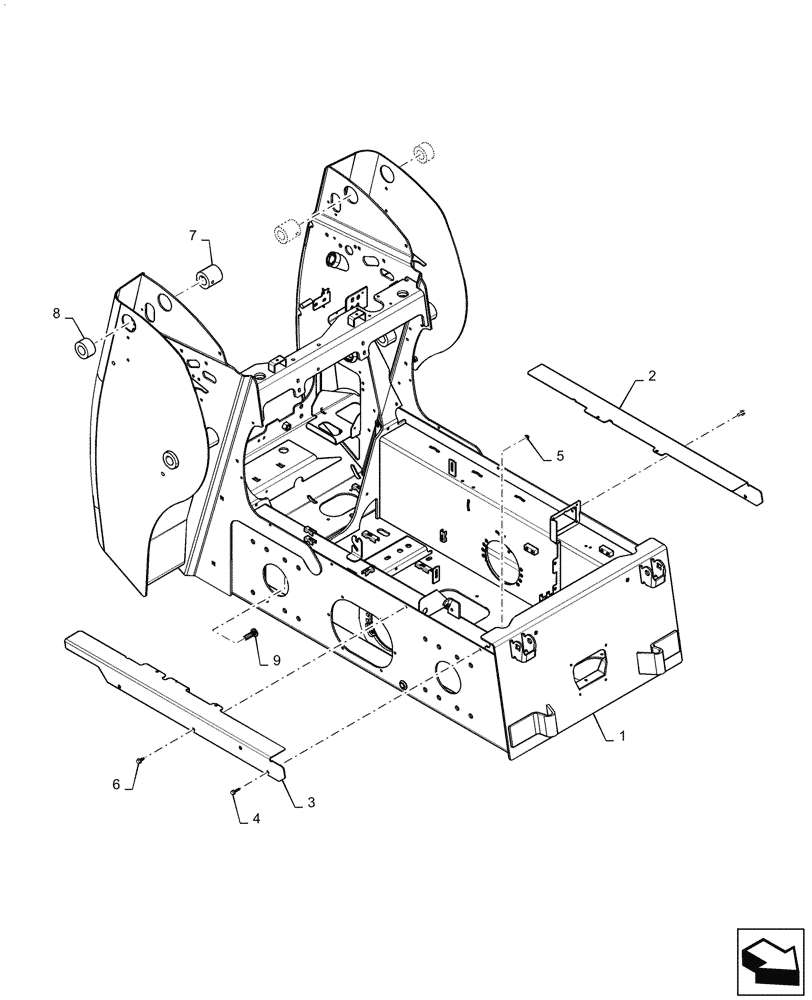

Запчасти Case SR130 (39.100.AB[01]) - CHASSIS (SR130, SR150) (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

Frame, Tan

1шт.

2

84404060

SKIRT

LH, Cab, Tan

1шт.

3

84404067

SKIRT

RH, Cab, Tan

1шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

7

84331416

HUB

Frame to H-Link

2шт.

8

84201040

HUB

Frame to H-Link

2шт.

9

84162937

STUD,M16 x 50mm, Cl 9.8

Axle Mounting

32шт.
