Запчасти Case SR130 (35.723.AA[01]) - BUCKET CYLINDER (SR130,SR150) UNITS BUILT AFTER 21-DEC-2012 (35) - HYDRAULIC SYSTEMS

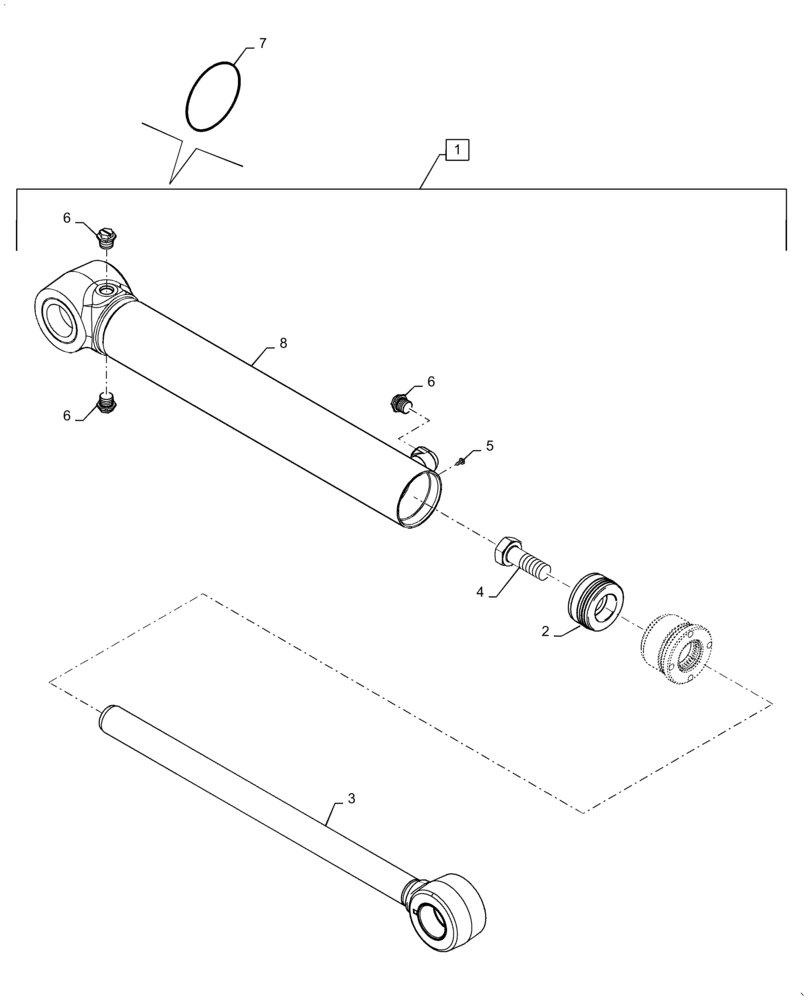

Схема запчастей Case SR130 - (35.723.AA[01]) - BUCKET CYLINDER (SR130,SR150) UNITS BUILT AFTER 21-DEC-2012 (35) - HYDRAULIC SYSTEMS
2
3
6
5
6
8
4
1
6
7

Артикул

Название

Примечание

Количество

1

47364450

HYDRAULIC CYLINDER,Double Acting, 31.7mm Rod, 370.1mm Stroke

Bucket Lift, Incl 2 - 8, Start Year: 21-DEC-12

1шт.

2

NSS

NOT SOLD SEPARAT

Piston - Gland Package, Incl in 1, Start Year: 21-DEC-12

1шт.

3

84242142

PISTON ROD/GLAND,31.7mm OD x 554.6mm L

1шт.

4

86982434

SPECIAL BOLT,3/4" - 16 x 2"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

86625122

PLUG,HWH, 9/16" - 18 x 0.69" Incl NSS O-Ring

3шт.

7

47364495

SEAL KIT

Services 1, Start Year: 21-DEC-12

1шт.

8

NSS

NOT SOLD SEPARAT

Hydraulic Tube, 57.2mm OD, Incl in 1, Start Year: 21-DEC-12

1шт.

Выбрано товаров: 8
