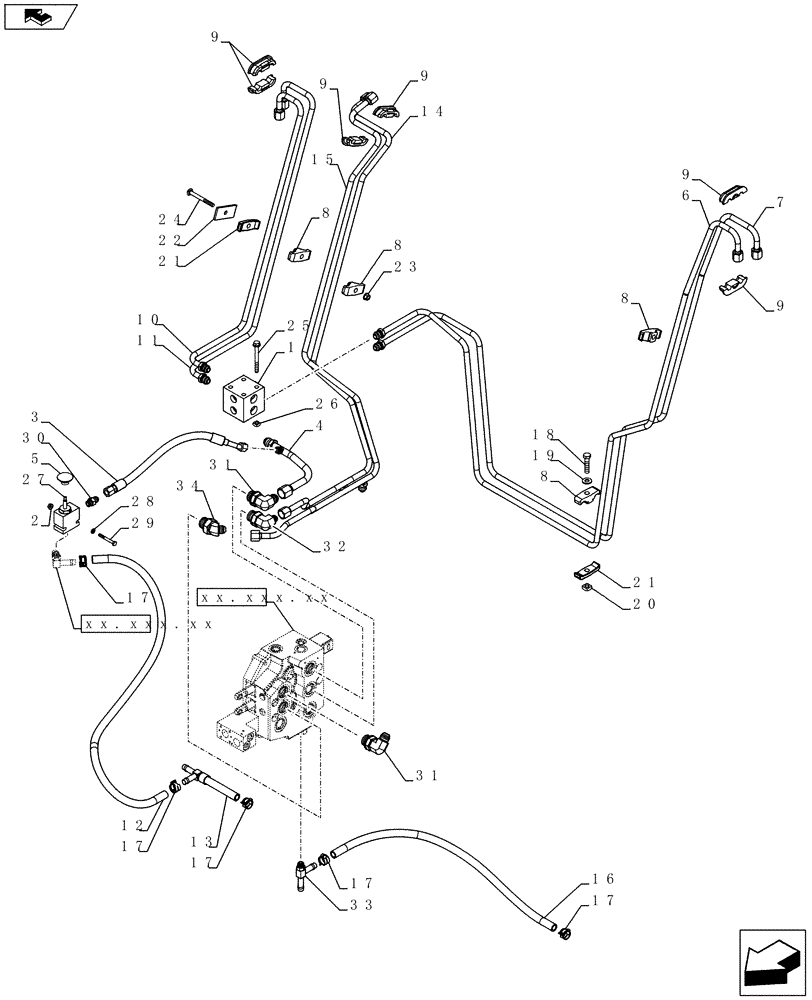

Запчасти Case SR130 (35.701.AX[01]) - LOADER VALVE PLUMBING (SR130,SR150) (35) - HYDRAULIC SYSTEMS

1

84258823

HYDRAULIC MANIFOLD

1шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

3

84296501

HOSE ASSY.,9.53mm ID x 444mm L, SAE 100R16

Override

1шт.

4

84293494

HYD TUBE

Lift Loader Valve To Manifold

1шт.

5

87522292

KNOB

Knob, Override Valve

1шт.

6

84336620

HYD TUBE

Tube, Lift, Manifold To Left Arm

1шт.

7

84336616

HYD TUBE

Tube, Lower, Manifold To Left Arm

1шт.

8

D120679

CLAMP,Tube, 1/2"

1/2in

4шт.

9

376523A2

SUPPORT,1/2"

1/2in

6шт.

10

84293506

HYD TUBE

Tube, Lower, Manifold To Right Arm

1шт.

11

84331818

HYD TUBE

Tube, Lift, Manifold To Right Arm

1шт.

12

84309593

HOSE,12.7mm ID x 1005mm L

Override To Brake Valve Drain

1шт.

13

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

Incl Hose

1шт.

14

84335145

HYD TUBE

Tube, Tip, Loader Valve To Right Arm

1шт.

15

84335144

HYD TUBE

Tube, Tip, Loader Valve To Right Arm

1шт.

16

84309595

HOSE,12.7mm ID x 745mm L

Small Valve To Drain Manifold

1шт.

17

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

18

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

20

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10-1.5

1шт.

21

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

2шт.

22

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

1шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

24

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

25

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

2шт.

26

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8-1.25

2шт.

27

84294239

VALVE

Boom Override

1шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

29

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

30

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

31

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

32

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

33

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1/2 x 1/2 x 9/16 ORB

1шт.

34

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

ORB 8-12

1шт.
