Запчасти Case SR130 (35.300.AQ) - TANK, HYDRAULIC (SR130,SR150,SR175,SR200,SR220,SR250,TR270,TR320) (35) - HYDRAULIC SYSTEMS

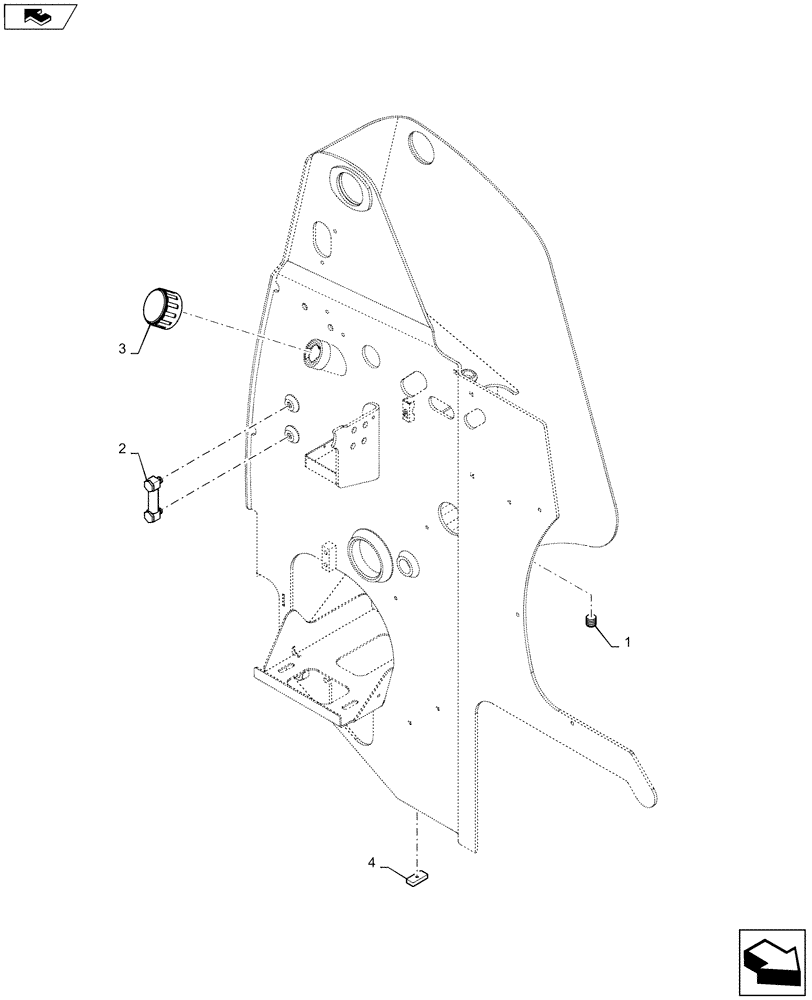

Схема запчастей Case SR130 - (35.300.AQ) - TANK, HYDRAULIC (SR130,SR150,SR175,SR200,SR220,SR250,TR270,TR320) (35) - HYDRAULIC SYSTEMS
4
3
1
home
2

Артикул

Название

Примечание

Количество

1

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

1шт.

2

84344624

GAUGE

Liquid Level Gauge, Years: -01-OCT-13

1шт.

2

47503058

GAUGE

Liquid Level Gauge, Years: 02-OCT-13-14-JUN-14

1шт.

2

47641996

GAUGE

Liquid Level Gauge, Start Year: 15-JUN-14

1шт.

3

257448A1

CAP

Hydraulic Fill

1шт.

4

328955A1

MAGNET,22.23mm W x 47.63mm L x 9.91mm Thk

1шт.

Выбрано товаров: 6
