(10.304.AL[01]) - REMOTE OIL, LINE (SR130,SR150)

Запчасти Case SR130 (10.304.AL[01]) - REMOTE OIL, LINE (SR130,SR150) (10) - ENGINE

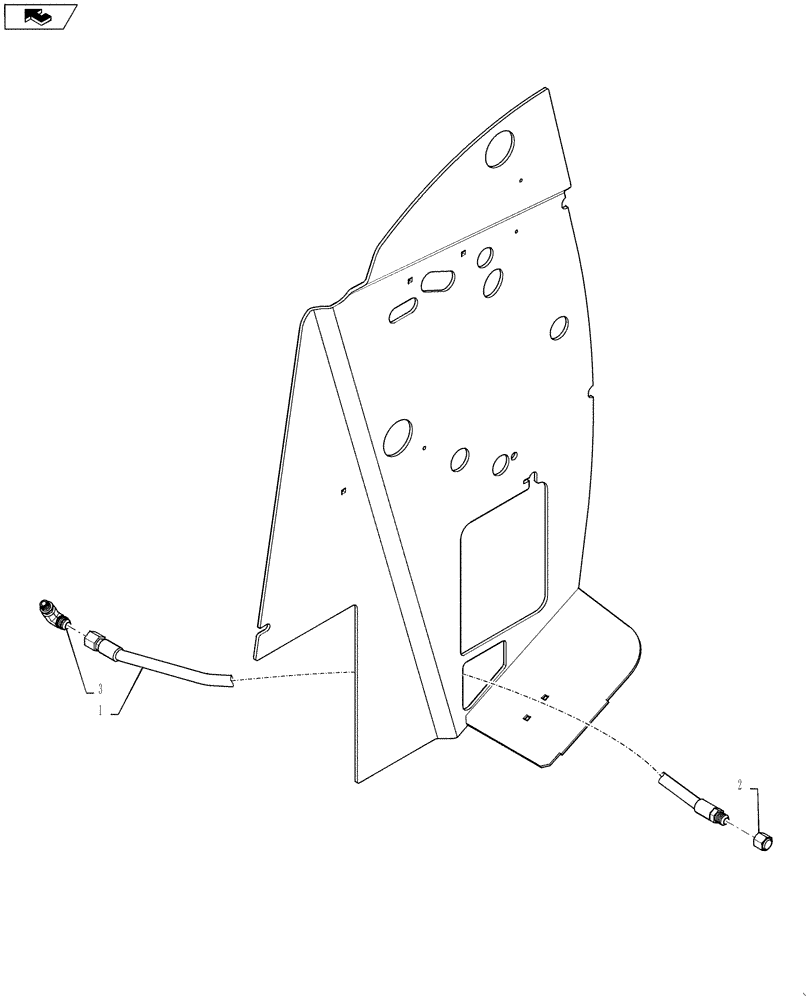

Схема запчастей Case SR130 - (10.304.AL[01]) - REMOTE OIL, LINE (SR130,SR150) (10) - ENGINE
1
home
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84277454

HOSE,12.7mm ID x 750mm L, SAE 100R16

Remote Oil Drain

1шт.

2

262159

CAP,3/4" - 16 Fem JIC

1шт.

3

84321974

PIPE FITTING,90 Degree, M12 x 1.25 x 7/8"-14

Remote, Engine Oil

1шт.

Выбрано товаров: 3
