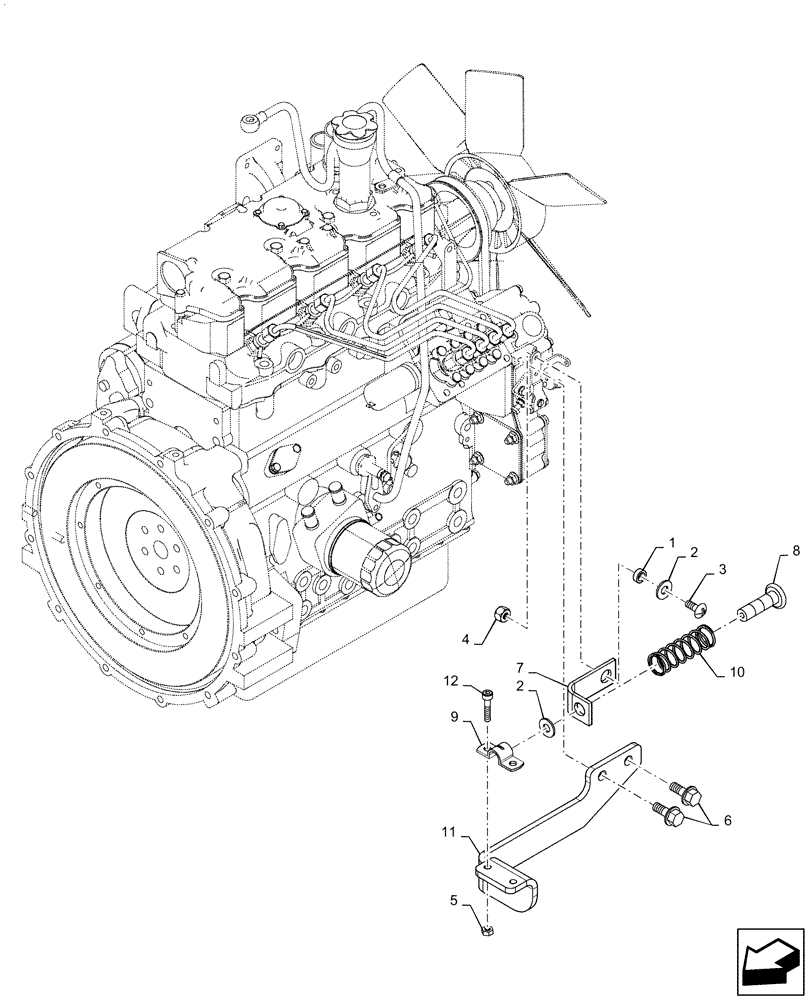

Запчасти Case SR130 (10.220.AA[01]) - THROTTLE, MOUNTING (SR130, SR150) (10) - ENGINE

1

13734

SPACER,6.52mm ID x 9.52mm OD x 3.43mm W

ID 0.257" x OD 0.375"

1шт.

2

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

3

84821

SCREW,Truss HD, #10 - 24 x 1/2"

1шт.

4

88826

LOCK NUT,#10-24, GA

1шт.

5

100012

NUT,M4 x 0.7, Cl 8

2шт.

6

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

7

9844532

BRACKET

2 Hole, L-Bracket

1шт.

8

9860169

RIVET,10-32 Thread, 19.6mm Shoulder

Drilled

1шт.

9

84200938

CLAMP

Throttle Cable

1шт.

10

84286072

SPRING

Throttle

1шт.

11

84321269

BRACKET

Throttle Cable

1шт.

12

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

2шт.
