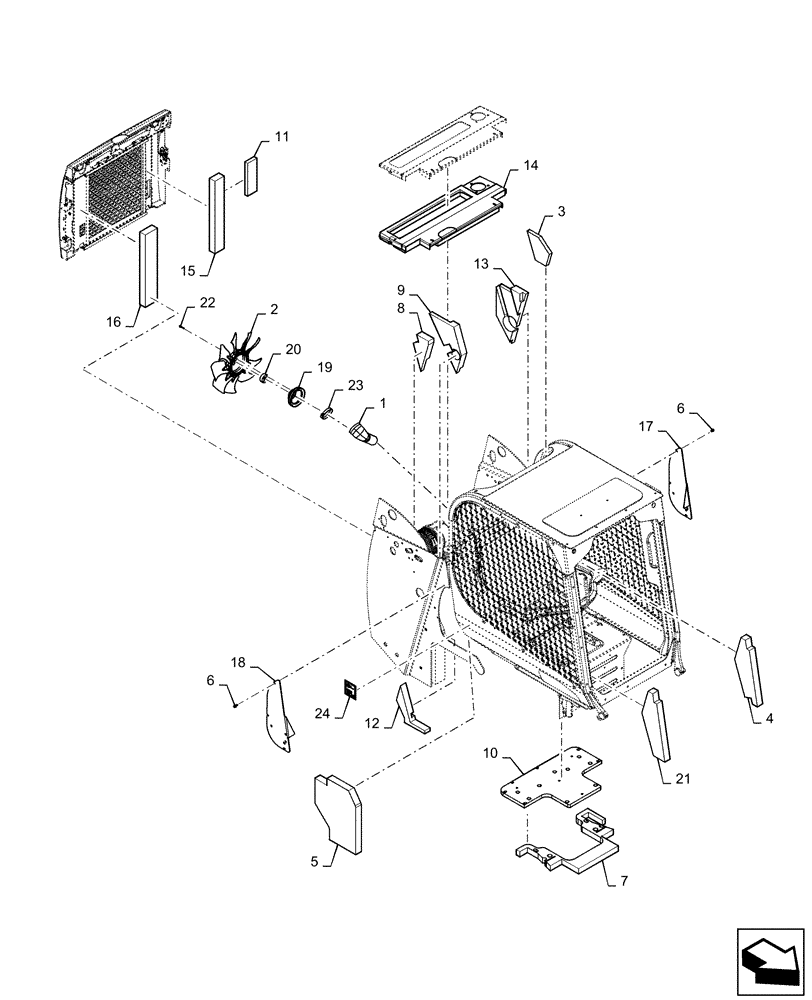

Запчасти Case SR130 (88.100.10[21]) - ENGINE ACCESSORIES EU/OPEN EU (SR130) (88) - ACCESSORIES

1

87573940

HOSE

Inlet Extension

1шт.

2

47414133

FAN

Clockwise Pusher 440EU

1шт.

3

47522827

FOAM INSULATION

Tower, Rear LH

1шт.

4

47522829

FOAM INSULATION

Tower, Rear LH

1шт.

5

47637596

FOAM INSULATION

Counter Weight

1шт.

6

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

7

84366352

FOAM INSULATION

Heal Plate Vertical

1шт.

8

84366354

FOAM INSULATION

Tower, Upper RH

1шт.

9

84366356

FOAM INSULATION

Tower, Upper Rear RH

1шт.

10

84372040

FOAM

Seat Pan, Open Cab Only

1шт.

11

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan, LH

1шт.

12

84373799

FOAM INSULATION

Tower Lower, RH

1шт.

13

84373800

FOAM INSULATION

Tower Rear LH

1шт.

14

84374185

FOAM INSULATION

Panel Cover

1шт.

15

84374541

FOAM INSULATION

Rear Door LH

1шт.

16

84374542

FOAM INSULATION

Rear Door RH

1шт.

17

84383823

COVER

Chassis Vent, LH

1шт.

18

84383826

COVER

Chassis Vent, RH

1шт.

19

84388643

PULLEY,136.73mm OD

ISM Fan

1шт.

20

84513656

SPACER,21.1mm W

ISM

1шт.

21

84540795

FOAM INSULATION

Tower RH

1шт.

22

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

23

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

24

87353967

DECAL,LWA 101DB, 100mm x 110 mm

1шт.
