Запчасти Case SR130 (82.100.AG) - COUPLER, BASIC TAN (SR130,SR150) (82) - FRONT LOADER & BUCKET

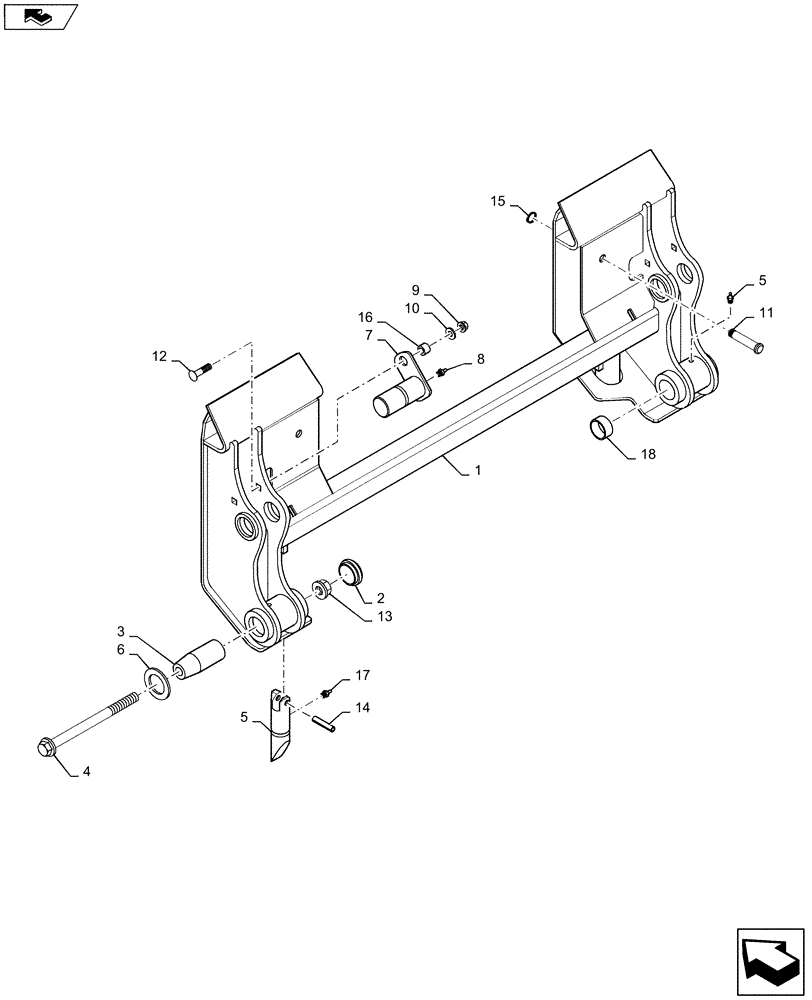

Схема запчастей Case SR130 - (82.100.AG) - COUPLER, BASIC TAN (SR130,SR150) (82) - FRONT LOADER & BUCKET
8
12
1
3
11
5
17
2
10
6
5
home
9
16
14
18
7
4
15
13

Артикул

Название

Примечание

Количество

1

84388287

MOUNT

Coupling, Weldment Assembly, Tan

1шт.

2

86561087

DUST CAP

Hub Cap

2шт.

3

87584328

PIN,38.10mm OD x 92mm L

2шт.

4

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

5

87758365

PIN,31.75mm OD x 142.3mm L

Latch

2шт.

6

191823

WASHER

2шт.

7

84259556

PIN,38.1mm OD x 99.4mm L

Coupler, Tip Cylinder

2шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

11

87387540

PIN,12.7mm OD x 67.55mm L

Pin Handle Pivot

2шт.

12

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

2шт.

13

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

14

86624091

PIN,9.53mm OD x 44.45mm L, Coiled

Latch

2шт.

15

87612753

RETAINER,#50, 0.46", Ext

Circlip, Ext. Hvy #50

2шт.

16

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

17

87414

LUBE NIPPLE,1/4" - 28

4шт.

18

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

38.35-38.15MM ID, 2 Per Side

4шт.

Выбрано товаров: 18
