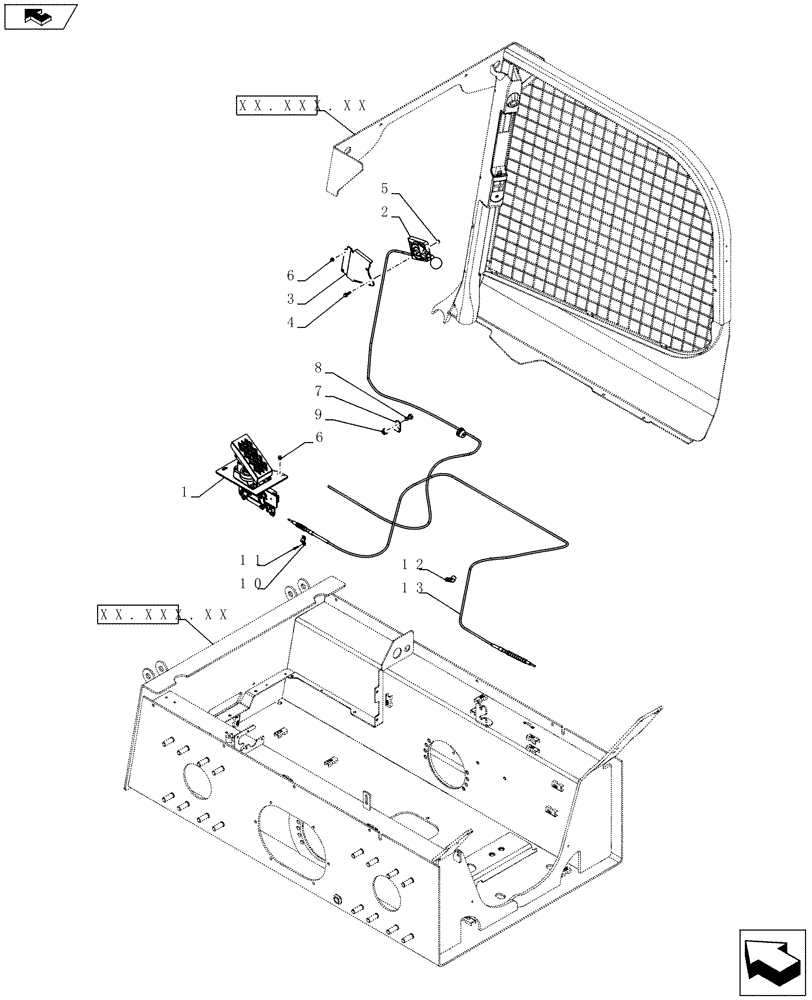

Запчасти Case SR130 (55.525.AB[02]) - THROTTLE CONTROL, HAND & FOOT EH (SR130,SR150) (55) - ELECTRICAL SYSTEMS

1

84374768

THROTTLE

EH, Foot

1шт.

2

84258153

HANDLE GRIP

Throttle to Pedal, Incl. Ref. 15-16, Years: -21-MAR-13

1шт.

2

47409019

HANDLE

Throttle To Pedal, Start Year: 22-MAR-13

1шт.

3

84333202

MOUNT

Hand Throttle, CE Gray, Years: -21-MAR-13

1шт.

3

47464466

MOUNT

Hand Throttle, Start Year: 22-MAR-13

1шт.

4

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

6

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

RDW-HD M6x25 TORX

5шт.

7

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

10

84200938

CLAMP

Throttle Cable

2шт.

11

86624126

HEX SOC SCREW,M4 x 16mm, Cl 8.8

4шт.

12

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

13

84258820

CABLE,2640mm L

Pedal to Governor, MD FRM ISM

1шт.

14

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

M6x1.0 (Not Shown)

2шт.

15

84270677

KNOB,M12 x 1.75

Handle Grip (Not Shown)

1шт.

16

182048A1

GROMMET

Handle Grip (Not Shown)

1шт.
