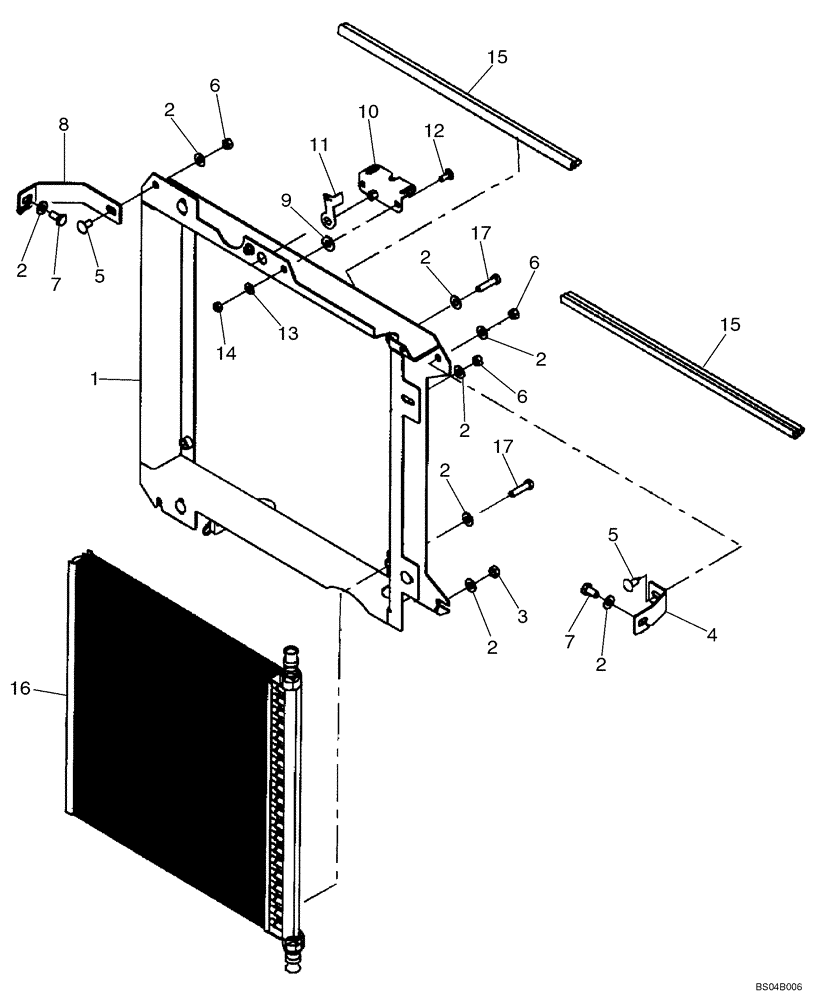

Запчасти Case 465 (06-01) - OIL COOLER - MOUNTING (06) - POWER TRAIN

1

87530722

SUPPORT

Replaces 87052318, 87436060

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

4

87017989

BRACKET

1шт.

5

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

6

25-106

NUT,3/8"-16, G5

6шт.

7

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

8

87434582

ANGLE

Radiator Support; Used On Models Without Remote Jump Start

1шт.

8

87582989

ANGLE

Radiator Support; Used On Models With Remote Jump Start

1шт.

9

495-21044

WASHER,3/8"

2шт.

10

84015292

LATCH

If Used

1шт.

10

87705306

LATCH

If Used

1шт.

11

87017116

LEVER

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

87016847

SEAL

2шт.

16

87037766

COOLER, OIL

1шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.
