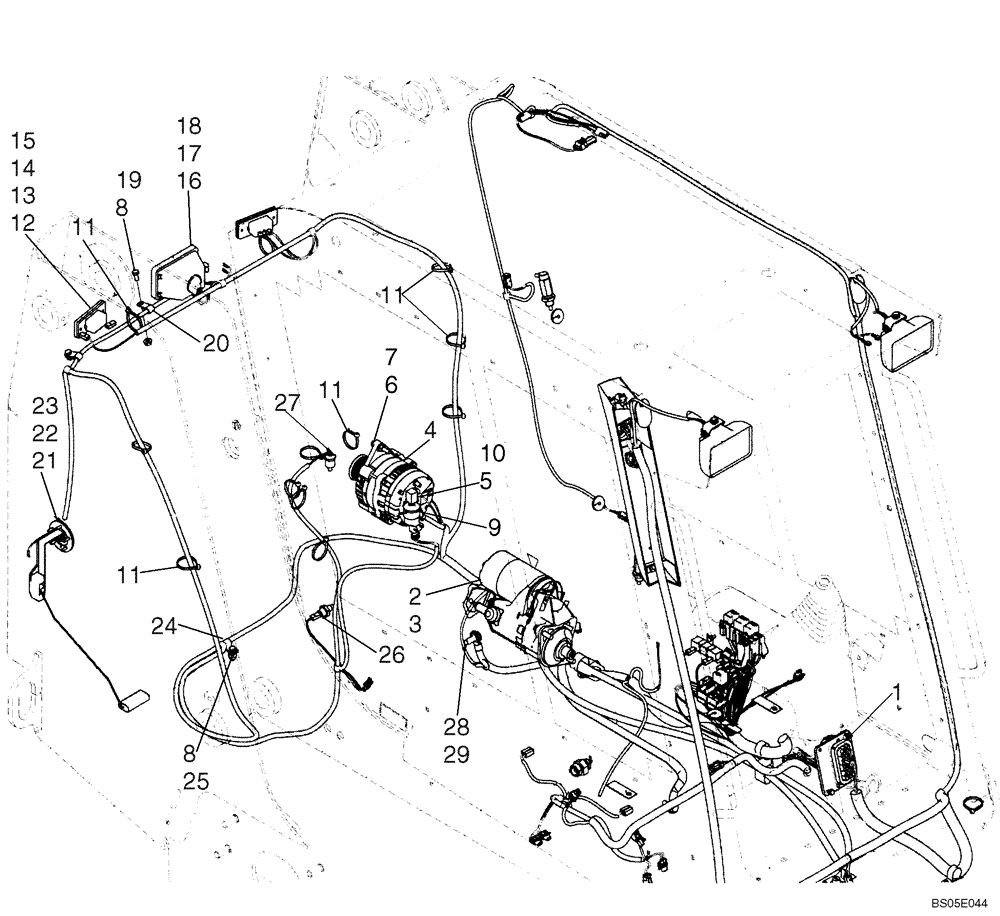

Запчасти Case 465 (04-07) - HARNESS, REAR - CHASSIS (04) - ELECTRICAL SYSTEMS

*

See Figure 04-06 For Front Section Of Chassis Harness Shown

1шт.

1

87050600

HARNESS

Main Chassis; Incl. 1A, 1B; Uses Switch 277016A1, Ref 26

1шт.

1

87608415

HARNESS

Main Chassis; Incl. 1A, 1B; Uses Switch 2852735, Ref 26; Replaces 87539870; Incl. Resistor Jumper 87603548 See Fig 04-06, Ref 20

1шт.

1a

L71879

DIODE ELEMENT,400V, 3A

Not Illustrated

1шт.

1b

NSS

NOT SOLD SEPARAT

Boot

1шт.

2

87040161

STARTER MOTOR,12V, 2.7kW

Incl. 3

1шт.

2

87040161R

REMAN-STARTER,12V, 2.7kW

Remanufactured, STARTER

1шт.

2

87040161C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

3

87040162

HARNESS

Starter Jumper

1шт.

4

87038475

ALTERNATOR

12V, 95 Amp; Component Parts Not Available At Time Of Printing

1шт.

4

87038475R

REMAN-ALTERNATOR

12V, 95 Amp

1шт.

4

87038475C

CORE-ALTERNATOR

Return Number

1шт.

4

84230294R

REMAN-ALTERNATOR

465 BSN N7M452623

1шт.

4

84230294C

CORE-ALTERNATOR

Return Number

1шт.

5

D36264

FITTING

Air Cleaner Adapter; Replaces 86976679

1шт.

6

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

9

293797A1

RESTRICTION SWITCH

Air; If used

1шт.

9

87013666

SWITCH,Air Filter Restriction

Air Restriction; If Used

1шт.

10

84015293

ELBOW,90 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

12

233163A2

LAMP, TAIL

LIGHT, TAIL Incl. 13 -15

2шт.

13

259499A1

BULB

12V, 5W

1шт.

14

260-13414

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

2шт.

15

NSS

NOT SOLD SEPARAT

Lens

1шт.

16

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Incl. 17, 18

1шт.

17

259702A1

BULB

50W

1шт.

18

259701A1

CLIP,ELECTRICAL

1шт.

19

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

20

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

21

426128A1

SENDER UNIT

SENDER Fuel Level

1шт.

22

528359R4

GASKET,3.05mm Thk

1шт.

23

87308282

SCREW,HWH, #10 - 32 x 3/4"

Replaces 280944

5шт.

24

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

26

277016A1

PRESSURE SWITCH

Oil, Blade Style Connector; Part # 277016A1 and Four Digit Date Stamped on Part; B.M. Instruments; Uses Harness 87050600

1шт.

27

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Temp

1шт.

26

2852735

PRESSURE SWITCH,Oil Pressure

Oil Pressure, Plug Style Connector With Latch; See Service Breakdown Figure 04-07A; Iveco; Uses Harness 87608415

1шт.

28

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

29

87458961

STUD

M12 x 80; Use with Nut 825-1412

1шт.

*

825-1412

NUT,M12, Cl 8

1шт.
