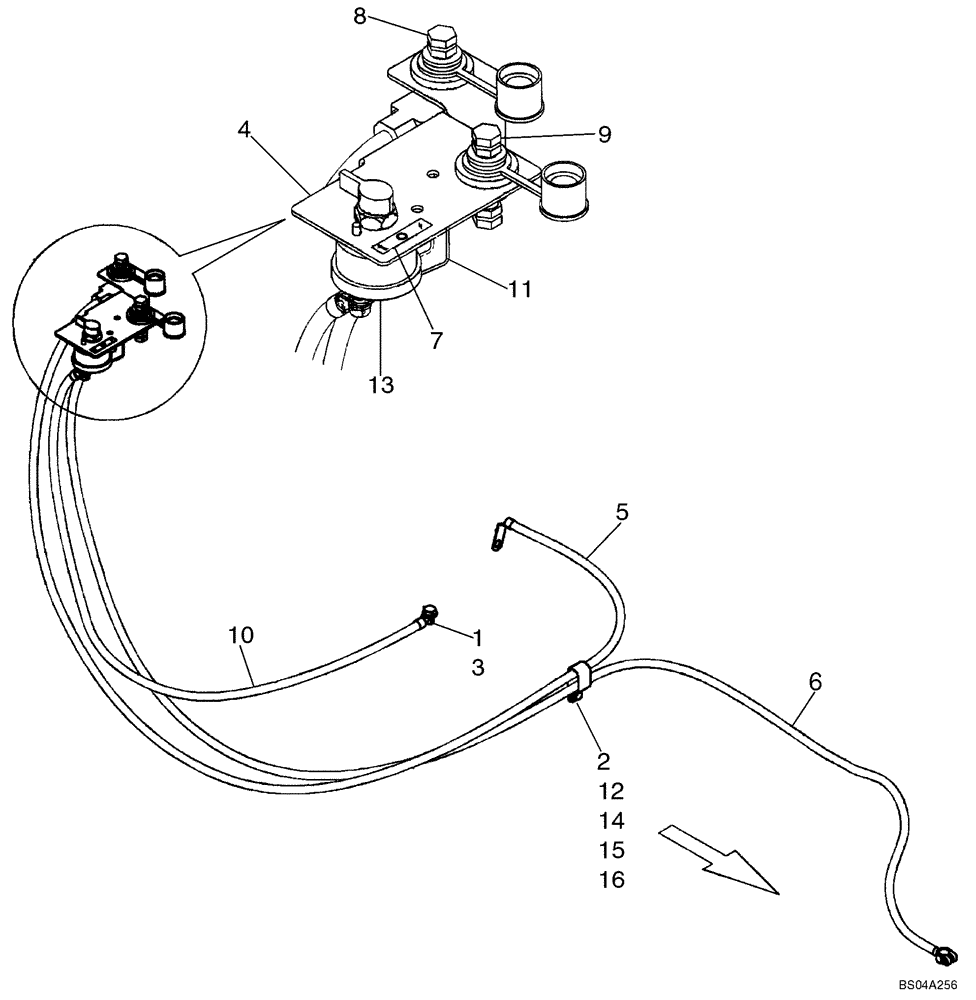

Запчасти Case 465 (04-05) - DISCONNECT SWITCH - REMOTE JUMP START (04) - ELECTRICAL SYSTEMS

1

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

2

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

4

87443460

BRACKET

Remote Jump Start

1шт.

5

87418257

ELECTRIC CABLE

Positive; Connects To Starter Positive Terminal

1шт.

6

87418292

CABLE

Connect To Negative Battery Post

1шт.

7

176332A1

DECAL

See Figure 09-44

1шт.

8

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Positive; Remote Jump Start

1шт.

9

399384A1

TERMINAL CONNECTOR

Negative; Remote Jump Start

1шт.

10

87443652

CABLE

1400 mm (55 in); Negative; Connect To Engine Block

1шт.

11

399665A2

ANCHOR

1шт.

12

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

2шт.

13

87409316

SWITCH

Master Disconnect

1шт.

14

87443567

WASHER

Clamp Mounting

2шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

86512554

NUT,M10 x 1.5, Cl 10

2шт.

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
