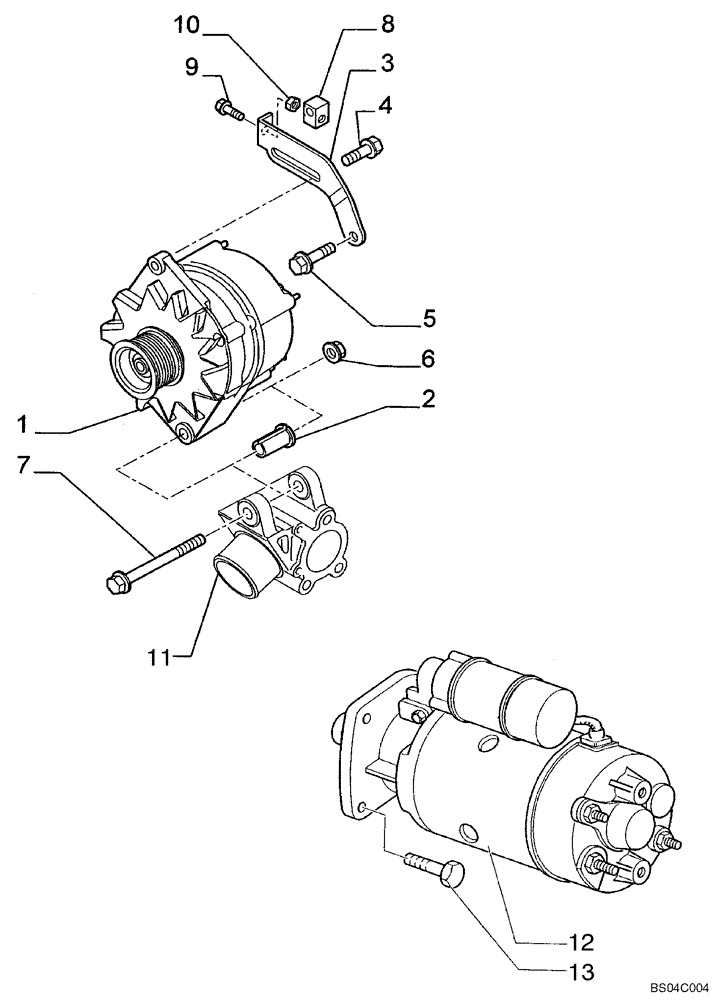

Запчасти Case 465 (04-03) - STARTER MOUNTING - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Alternator; See Figure 04-02

1шт.

2

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

1шт.

3

2853013

BRACKET

1шт.

4

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

1шт.

5

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

1шт.

6

4899004

FLANGE NUT

M10 x 1.5

1шт.

7

16599024

FLANGE BOLT,Hex, M10 x 120mm, Cl 8.8

M10 x 1.5 x 120

1шт.

8

2853014

DOWEL

1шт.

9

2853012

BOLT,Hex, M8 x 100mm

1шт.

10

17044731

FLANGE NUT,Hex, M8 x 1.25, Cl 10

1шт.

11

REF

INSTRUCTION

See Figure 02-32

1шт.

12

REF

INSTRUCTION

Starter; See Figure 04-01

1шт.

13

2853011

SCREW

M10 x 1.5 x 28

3шт.
