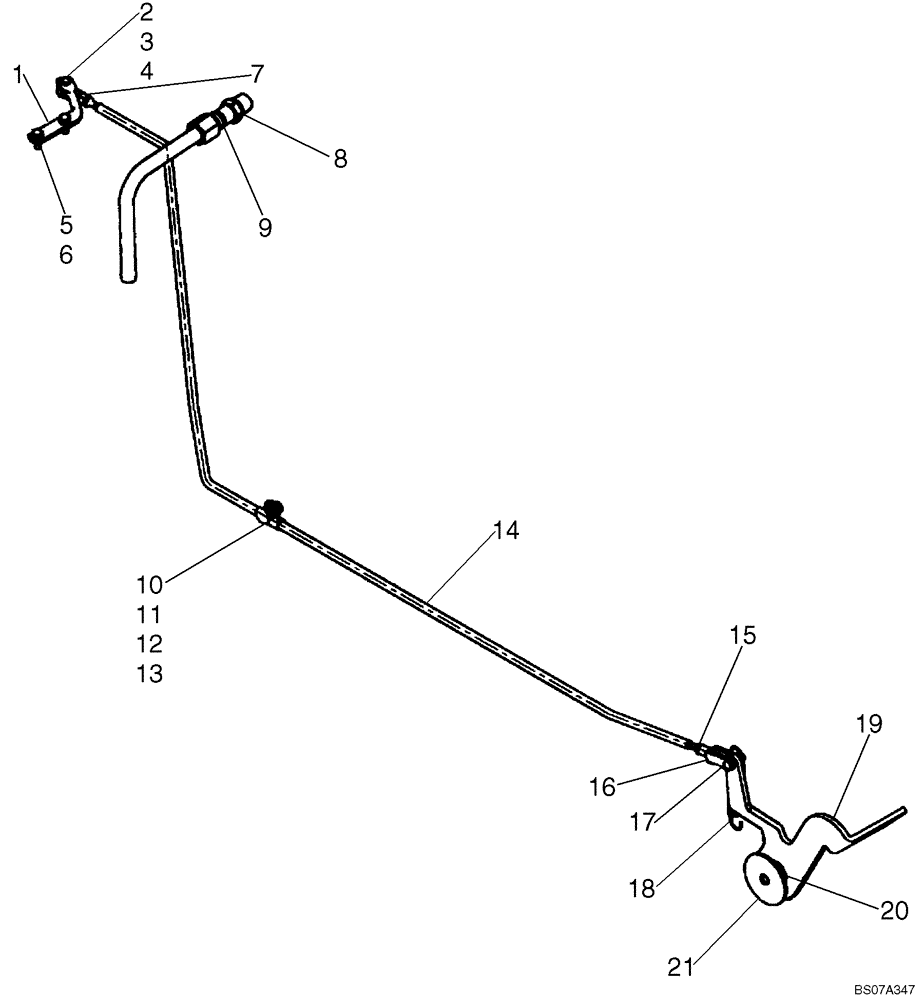

Запчасти Case 465 (03-02A) - CONTROLS - THROTTLE; IF USED, SEE REF 1 (03) - FUEL SYSTEM

87608660

SERVICE KIT

465 Throttle Kit; Incl. 1 - 21

1шт.

1

87608065

ROD

1шт.

2

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

1шт.

3

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

4

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

7

A146456

BALL

1шт.

8

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

1шт.

9

87612366

HEATER TUBE

1шт.

10

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

1шт.

11

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

9628098

NUT,M8 x 1.25, Cl 10

1шт.

13

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

1шт.

14

87602735

ROD

1шт.

15

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

16

86520436

ADJUSTABLE CLEVIS,1/4" - 28

1шт.

17

D23693

AXLE PIN

1шт.

18

D124939

SPRING

1шт.

19

87601406

THROTTLE

No Longer Used, Order 87743040

1шт.

19

87743040

BRACKET

Foot Throttle

1шт.

20

R14771

WASHER

1шт.

21

1342374C1

DISC

1шт.
