(03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED

Запчасти Case 465 (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM

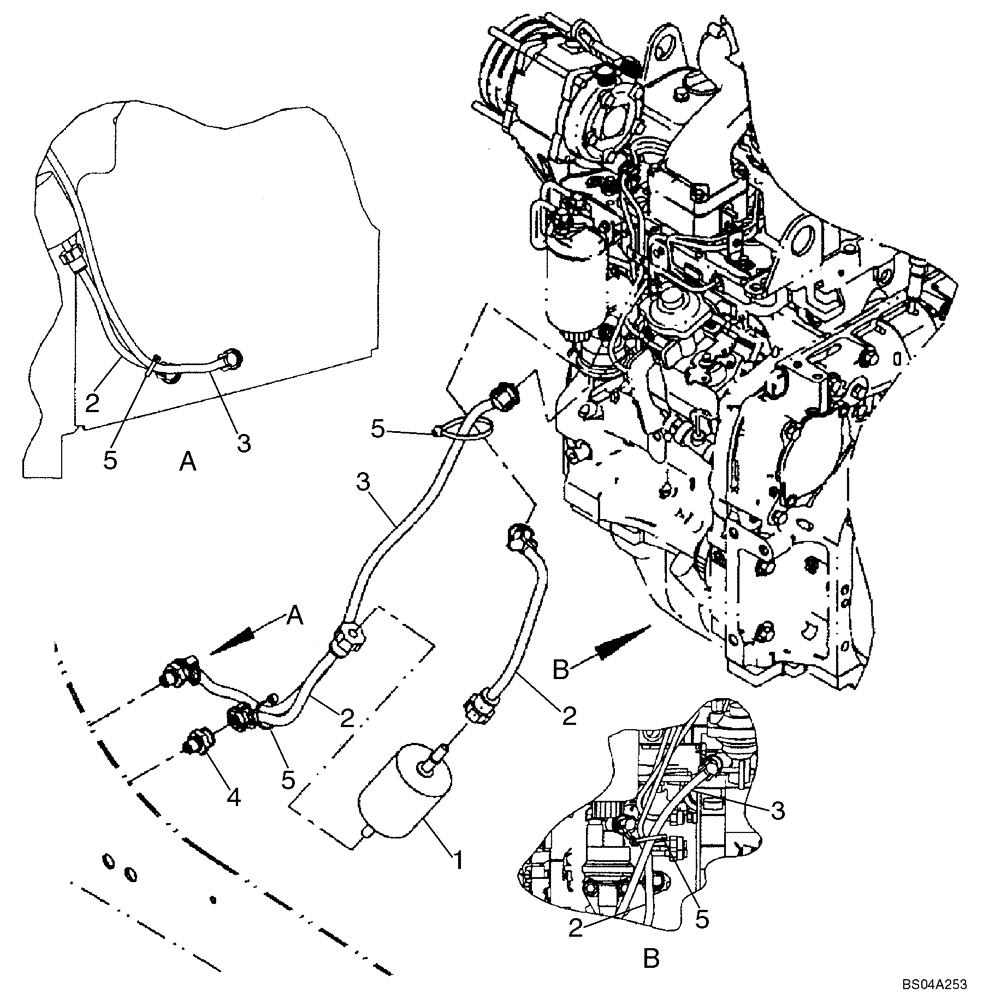

Схема запчастей Case 465 - (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM
5
2
5
5
2
5
2
3
1
4
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87548612

FUEL FILTER

Inline; Replaces 87019604

1шт.

2

87018091

TUBE

Fuel Line

2шт.

3

87435843

FUEL HOSE,6.35 mm ID x 755.00 mm

Fuel Line

1шт.

4

87431323

ADAPTER

2шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
