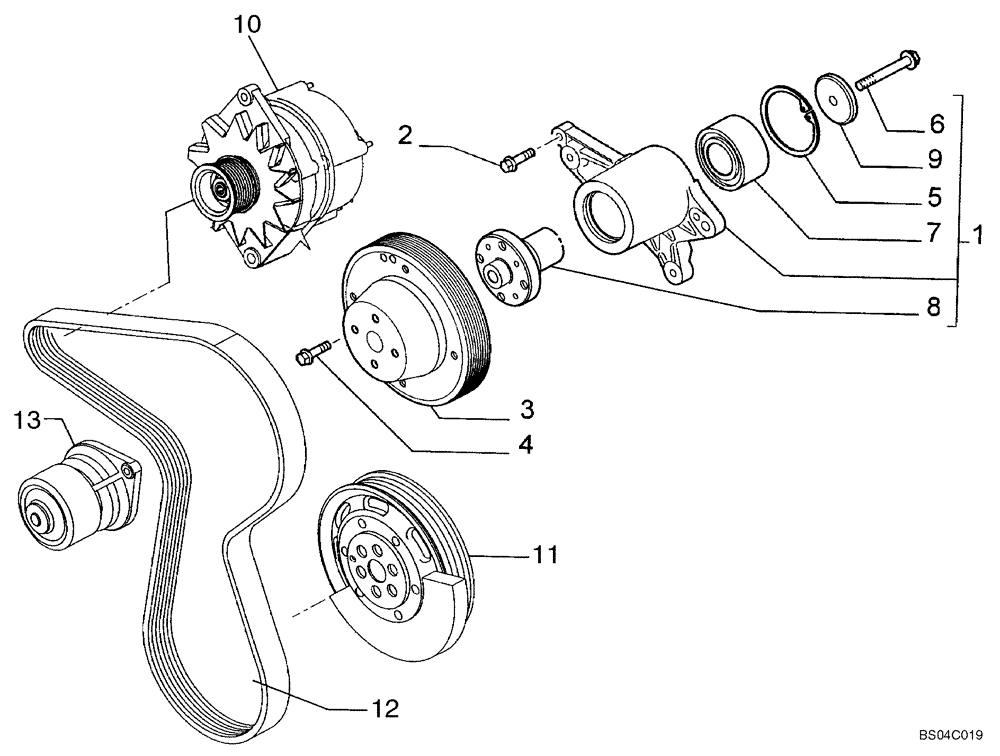

Запчасти Case 465 (02-35) - FAN DRIVE (02) - ENGINE

1

2853008

SUPPORT

Fan; Incl 5 - 9

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

2

4895608

SCREW

1шт.

3

2853010

PULLEY,158mm OD

Ratio 1:1; If Used

1шт.

3

J914459

PULLEY

Ratio 1.35:1; Used With V-Belt J911562, See Figure 02-06

1шт.

4

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

5

2852171

SNAP RING

1шт.

6

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

4892426

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

10

REF

INSTRUCTION

ALTERNATOR

1шт.

11

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.

12

REF

INSTRUCTION

FAN BELT; See Figure 02-06

1шт.

13

REF

INSTRUCTION

WATER PUMP; See Figure 02-31

1шт.
