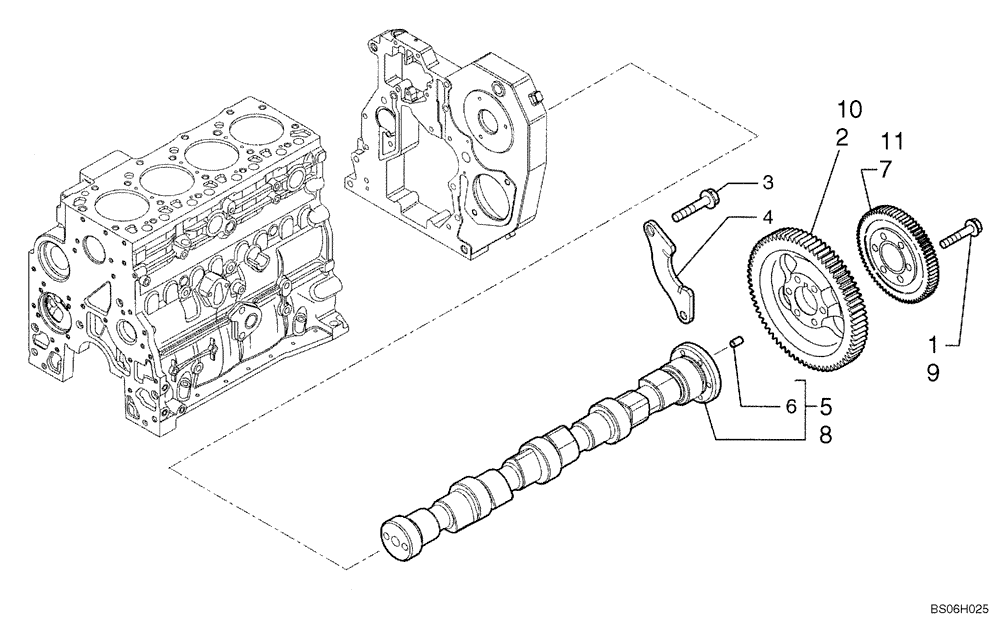

Запчасти Case 465 (02-26) - CAMSHAFT (02) - ENGINE

REF

INSTRUCTION

Camshaft W/ 529.5 mm (20.85 in) Length; If Used

1шт.

1

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

Used with Ref 2, Ref 5 and Ref 7

6шт.

2

2852062

GEAR,72T

35 mm (1.38 in) ID; If Used

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

4897457

SUPPORT

1шт.

5

4899610

CAMSHAFT

Assy, 529.5 mm (20.85 in) Length; Incl. Ref 6; Used w/ Ref 10, 2852023 Flywheel Housing Cover, See Fig. 02-15

1шт.

5

4899610R

REMAN-CAMSHAFT

Remanufactured Camshaft

1шт.

5

4899610C

CORE-CAMSHAFT

Return Number

1шт.

6

4899080

DOWEL,M6 x 8 L

1шт.

7

2852063

DRIVEN GEAR

52T; 32 mm (1.26 in) ID; If Used

1шт.

REF

INSTRUCTION

Camshaft W/ 554.5 mm (21.83 in) Length; If Used

1шт.

8

2855099

CAMSHAFT

Camshaft Assy, 554.5 mm (21.83 in) Length; Incl. Ref 6; Used w/ Ref 16, 2855178 Flywheel Housing Cover, See Fig 02-14

1шт.

8

2855099R

REMAN-CAMSHAFT

Remanufactured Camshaft;

1шт.

8

2855099C

CORE-CAMSHAFT

Return Number

1шт.

9

4899053

SCREW,Hex Flg, M8 x 45

M8 X 45 ; Used with Ref 8, Ref 10 and Ref 11

6шт.

10

2854958

DRIVEN GEAR

Camshaft, 40 mm (1.57 in) ID

1шт.

11

2854959

DRIVEN GEAR

Driven Gear, 52T, 40 mm (1.57 in) ID

1шт.
