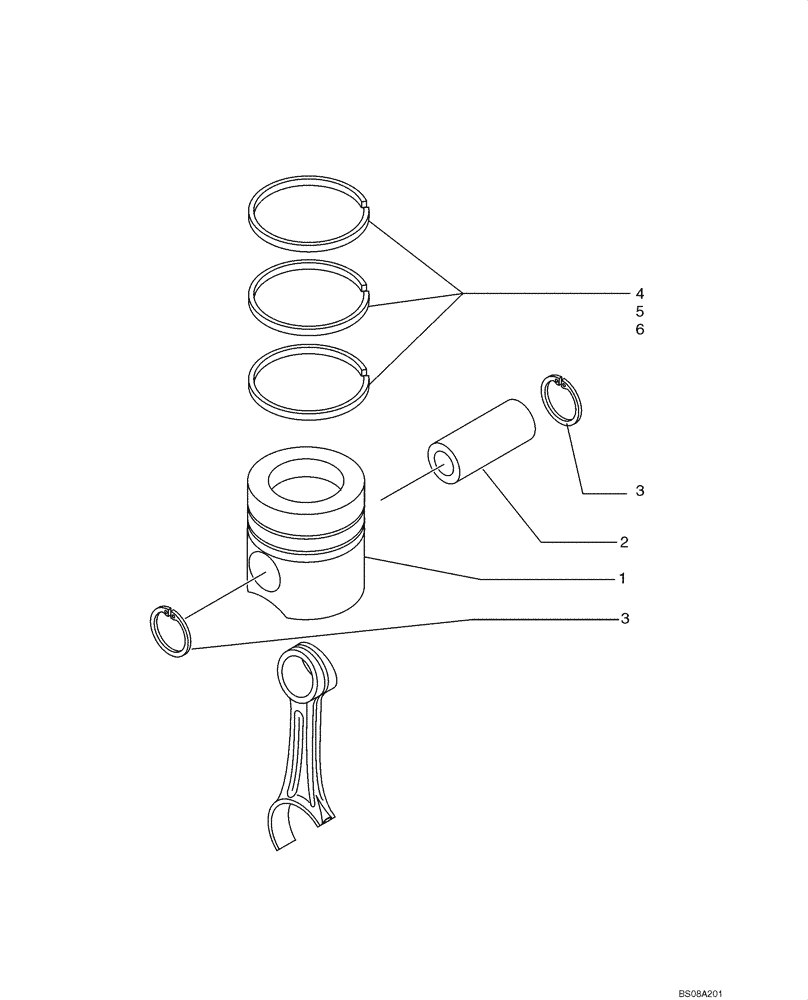

Запчасти Case 465 (02-23) - PISTONS - CONNECTING ROD (02) - ENGINE

1

2855531

PISTON

Std.; Does not include rings

4шт.

1

NSS

NOT SOLD SEPARAT

NOT SERVICED SEPARATELY 0.1 Oversize; Does Not Include Rings; NSS 2856484; Order Kit 87647550

4шт.

1

0.8 Oversize; Does Not Include Rings

4шт.

2

4892712

PISTON PIN,38mm OD x 82mm L

4шт.

3

4892713

SNAP RING,Int, M26.4

8шт.

3

2854030

SNAP RING,M40.8 OD

Alternate part to 4892713

8шт.

4

87316935

PISTON RINGS KIT

Piston Ring Kit, Standard; Incl Top Compression Ring, Second Compression Ring, Oil Control Ring

4шт.

4

2852036

PISTON RING

Top Compression Ring, Standard

4шт.

4

2830158

PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk

Second Compression Ring, Standard; 2.39 mm Wide; Yellow Identification Mark

4шт.

4

2852037

SEAL,95.3mm ID x 104mm OD x 4mm Thk

Oil Control Ring, Standard; 3.00 mm Wide; Red Identification Mark

4шт.

5

87316944

SET,PISTON RINGS+0.4

SET OF PISTON RINGS +0.4 Piston Ring Kit, 0.4mm Oversize; Incl Top Compression Ring, Second Compression Ring, Oil Control Ring

4шт.

5

NSS

NOT SOLD SEPARAT

Top Compression Ring, 0.4mm Oversize

4шт.

2852587

1шт.

5

NSS

NOT SOLD SEPARAT

Second Compression Ring, 0.4mm Oversize

4шт.

2830159

1шт.

5

NSS

NOT SOLD SEPARAT

Oil Control Ring, 0.4mm Oversize

4шт.

2853875

1шт.

6

87316959

SET PISTON RINGS+0.8

Piston Ring Kit, 0.8mm Oversize; Incl Top Compression Ring, Second Compression Ring, Oil Control Ring

4шт.

6

NSS

NOT SOLD SEPARAT

Top Compression Ring, 0.8mm Oversize

4шт.

2852588

1шт.

6

NSS

NOT SOLD SEPARAT

Second Compression Ring, 0.8mm Oversize

4шт.

2830160

1шт.

6

NSS

NOT SOLD SEPARAT

Oil Control Ring, 0.8mm Oversize

4шт.

2853876

1шт.
