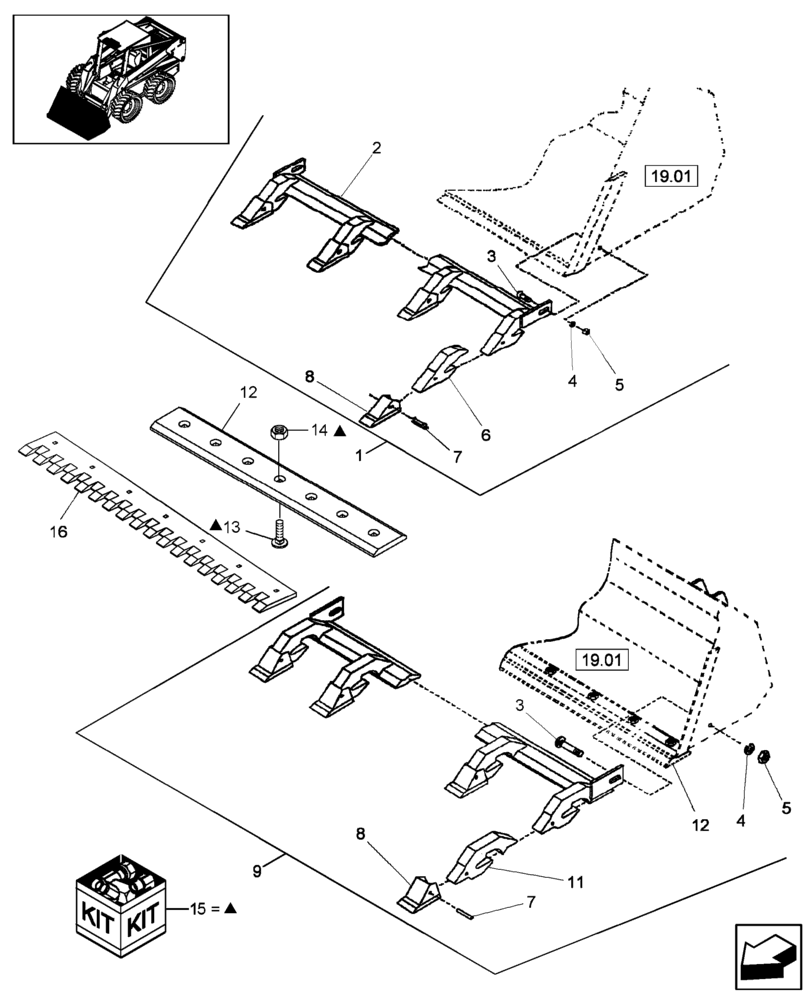

Запчасти Case 465 (95.018.CCF) - 4 X 1 BUCKET (CONSTRUCTION), 465 (95) - CE ATTACHMENTS

1

9624722H

BAR ASSY.

Bar, Tooth, 72" Bucket with Weld-on Cutting Edge, Includes: Ref. 2 thru 8

1шт.

1

9624723H

BAR ASSY.

Bar, Tooth, 78" Bucket with Weld-on Cutting Edge, Includes: Ref. 2 thru 8

1шт.

1

86591909DS

SPARE PART

Bar, Tooth, 84" Bucket with Weld-on Cutting Edge, Includes: Ref. 2 thru 8

1шт.

2

NSS

NOT SOLD SEPARAT

Tooth Bar

1шт.

3

280617

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

2шт.

4

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

5

85700693

NUT,5/8" - 11, Gr C

2шт.

6

SML41561

SHANK

Tooth

1шт.

7

D9NNA335AA

PIN

Retaining

1шт.

7

D9NNA335AADS

PIN

Retaining, Direct Ship Item

1шт.

8

251472

BUCKET TOOTH

Fabricated

1шт.

8

251472DS

BUCKET TOOTH

Direct Ship Item

1шт.

9

86599708H

BAR ASSY.

72" Tooth Bar, Use with Bolt-on Wear Edge

1шт.

9

86599709DS

SPARE PART

78" Tooth Bar, Use with Bolt-on Wear Edge

1шт.

9

86599710DS

SPARE PART

84" Tooth Bar, Use with Bolt-on Wear Edge

1шт.

10

NSS

NOT SOLD SEPARAT

Tooth Bar, See Ref. 9

1шт.

11

SML44495

SHANK

1шт.

12

86577169

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L

Reversible, 7 Holes, 72" Bucket, Bolt-on

1шт.

12

86577171

CUTTING EDGE,78", Gray

Reversible, 9 Holes, 78" Bucket, Bolt-on

1шт.

12

86577173

CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2168.5mm L

Reversible, 9 Holes, 84" Bucket, Bolt-on

1шт.

13

86635723

BOLT

Plow, G8, 5/8"-11 x 2"

1шт.

14

85700693

NUT,5/8" - 11, Gr C

1шт.

15

86635434

KIT

Bolt, 7-Hole Cutting Edges

1шт.

15

86635435

KIT

Bolt, 9-Hole Cutting Edges

1шт.

16

HCE86577169

EDGE, CUTTING

72", 2 pieces

1шт.

16

HCE86577171

EDGE, CUTTING

78", 3 pieces

1шт.

16

HCE86577173

EDGE, CUTTING

84", 3 pieces

1шт.
