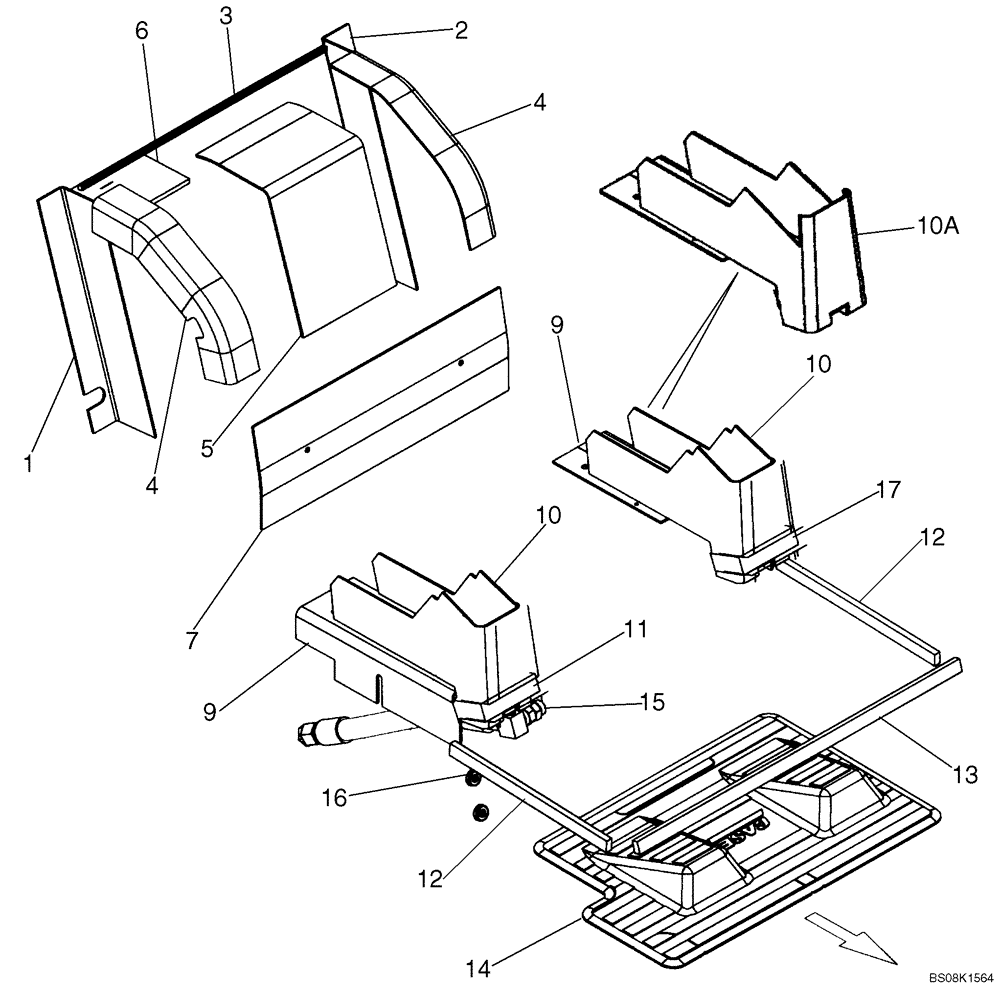

Запчасти Case 465 (09-41) - NOISE CONTROL, NORTH AMERICAN (09) - CHASSIS

1

309702A1

SHEET

Right Hand Extension

1шт.

2

309703A1

SHEET

Left Hand Extension

1шт.

3

315083A1

SEALING STRIP

Rear Window Frame

1шт.

4

309011A1

SHEET

Upper Corner

2шт.

5

318165A1

INSULATOR

Sound Dampening, Upper

1шт.

6

311222A1

LARGE PLATE

PLATE, LARGE Loader Lock Barrier

1шт.

7

318166A1

INSULATOR

Sound Dampening, Lower

1шт.

8

308877A1

PAD

Left Hand Console Barrier; If Used

1шт.

9

308879A1

PAD

Right Hand Console Barrier; If Used

1шт.

10

308917A1

PAD

Console; If Used

2шт.

10a

87723375

CONSOLE

Pad; If Used

2шт.

11

295007A1

SEAL

Console; If Used

2шт.

12

313149A1

SEAL

Side Screen; If Used

2шт.

12

87036371

SEAL

If Used

2шт.

13

313150A1

SEAL

ROPS Toe Guard; If Used

1шт.

13

87036372

SEALING STRIP

ROPS Toe Guard; If Used

1шт.

14

87461562

FLOOR MAT

1шт.

15

REF

INSTRUCTION

Models With Split Pump Configuration, Not Shown, See Figure 06-02C

1шт.

15

REF

INSTRUCTION

Models With In-Line Pump Configuration, As Shown, See Figure 06-02D

1шт.

16

313231A1

BAND

Cable Seal; If Used

2шт.

17

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In; Not Illustrated

20шт.

87541420

SERVICE KIT

Models With Split Pump Configuration; Incl. 1 - 17, Parts On Figure 06-02C, And Instructions

1шт.

87541419

SERVICE KIT

Models With In-Line Pump Configuration; Incl. 1 - 17, Parts On Figure 06-02D, And Instructions

1шт.

87541418

SERVICE KIT

Models With In-Line Pump Configuration; Incl. 1 - 11, 14 - 16 And Parts On Figure 06-02D, 09-41A

1шт.
